30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

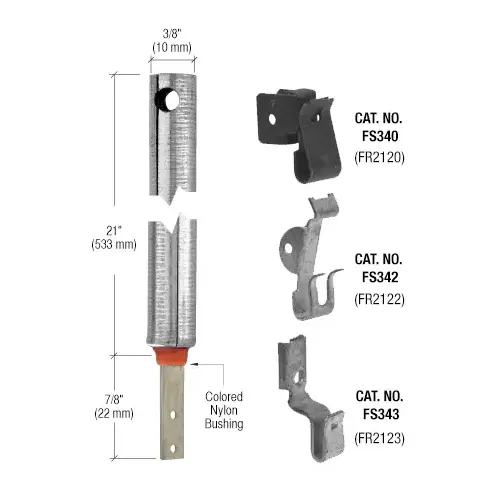

- Includes Factory Installed End Clip FS340
- For Sash Load Weights of Up to 25 Pounds
- Industry Standard 3/8" (10 mm) Tube Diameter
3/8" (10 mm)
21" (533 mm)
How to Order Tubular Spiral Window Balances with Factory Installed Clips:
1. Specify that the tube on the old balance is metal or plastic.
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only. Do not include the rod extension.
3. Check the color of the nylon bushing.
4. Verify that the rod extension protruding from the nylon bushing matches.
5. Choose required clip.
6. Match tube diameter, tube length, nylon bushing color and clip against the balance to be replaced. If all agree, then this is the correct balance. Important Notes: NOTE: This FR Series Balance is also available with End Clips FS342 (Cat. No. FR2122) and FS343 (Cat. No. FR2123).
