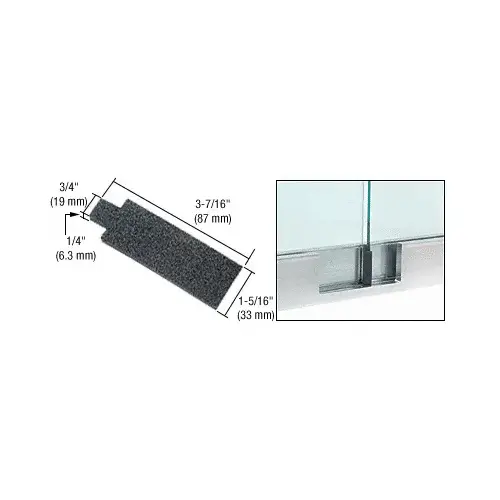

CRL GR7NSB 3/4" High Density Foam Spacing and Sealing Pads
Item #: GR7NSB by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Can Be Adhered Together to Increase the Gap Between the Glass Panels in 1/4" (6 mm) Increments
- Die Cut Foam Pad with Adhesive on One Side
- Fast and Accurate Spacing and Sealing of Glass Panels
Pad Length
3-7/16" (87 mm)
Pad Thickness
1/4" (6 mm)
Pad Width
1-5/16" (33 mm)
Fits Base Shoe Series
B7S
Glass Thickness
3/4" (19 mm)
Finish
Black
Material
Foam
Thickness
1/4
Length
3-7/16
Width
1-5/16
Glazing Thickness
3/4
Finish/Color
Black
Adhesive Back
Yes
These CRL High Density Foam Spacing and Sealing Pads not only act as spacers between panels of glass, they also create a seal at the end of selected panels, acting as a dam for your desired pour area. They are easily installed and perfectly aligned every time using the CRL Rubber Spacing Block and Sealing Pad Installation Tool. The adhesive on one side allows the pads to be adhered together so spacing can be increased in 1/4" (6 mm) increments to meet your needs. Use with Rigid Rubber Spacing Blocks on slant pours to prevent glass movement during installation.
NOTE: You must cut 5/8" (16 mm) off of the length of the Spacing and Sealing Pad when used with B5L Series Low Profile Base Shoe.
