3 Hour Fire Rated 4' Exit Only Economy Rim Exit Device Aluminum Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

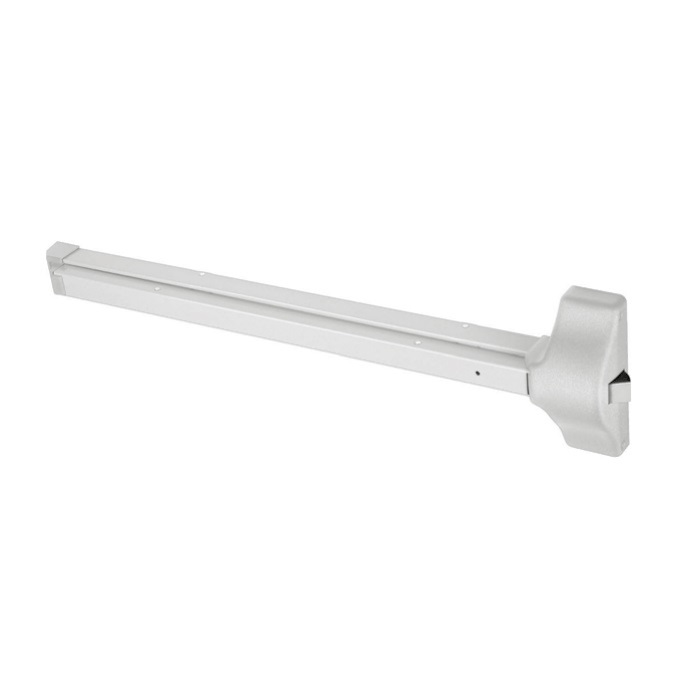

Yale Security Inc 1800F48689 3 Hour Fire Rated 4' Exit Only Economy Rim Exit Device Aluminum Finish

Item #: 1800F48689 by Yale Commercial

See reviewsSee reviews
See reviews summary

$317.64

/each
SAVE UP TO 31.76
Buying in bulk
Special Order*Usually ships in 1-2 weeks
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Features the Yale Free Wheeling Lever Mechanism
  • ANSI / BHMA A156.3 Grade 1
  • UL Listed for Use on Fire Doors Having a Rating Up to 3 Hours
  • Designed and Manufactured Under a Certified ISO 9001 Quality System
  • Limited 1 Year Warranty

Finish

Aluminum

Series

1800 Series

Design

Rim

Strike

757F Strike

Alternate Part Number-1

143272

Grade

ANSI/BHMA Grade 1

Application

Single Swing Doors; Pairs of Doors (Mullion Required)

Length

4

Function

Exit Only

Device Length

48 Inch (4 Foot)

Bolt Throw

3/4 Inch

Stile

Wide Stile

Fire Rated

Yes

Finish Description

Aluminum Painted

Device Type

Rim Device

ADA Compliant

No

Finish Family

Aluminum

Standards

ANSI/BHMA A156.3 Type 1, Grade 1; UL/cUL Listed: GXHX/GXHX7

Stile Width

4-1/2 Inch

Device Bar Projection

Active: 2-1/2 Inch; Depressed: 1-3/4 Inch

Device Rating

Fire Exit Device

For Door Thickness

1-3/4 Inch

Function Family

Exit Only Device

Features

Steel Interlock “E" Bracket Maintains Door-To-Mullion Relationship in Fire-Labeled Devices; High-Grade Steel Components Offer Superior Protection Against Wear and Tear; 3 yr Limited Warranty

Product Type

Exit Device

Door Material

Metal; Wood or Composite

Manufacturer Parent

Assa Abloy

Sub-Series

1800F-48-689

Dimension

45" Overall Length; 2-1/8" Bar Width; 2-1/2" Projection While Extended

Material

Aluminum

Door Thickness

1-3/4"

Door Width

42" to 48" Doors

Manufacturer Warranty

Limited 1 year warranty

Includes Cylinder(s)

No

Minimum Stile Size

4-1/2"

UL Listing Type

UL/cUL Listed

Hazardous Material

No

Finish code

689

No of inners

1

Product Overview
3 Hour Fire Rated 4 ft Exit Only Economy Rim Exit Device 689 Aluminum Finish
