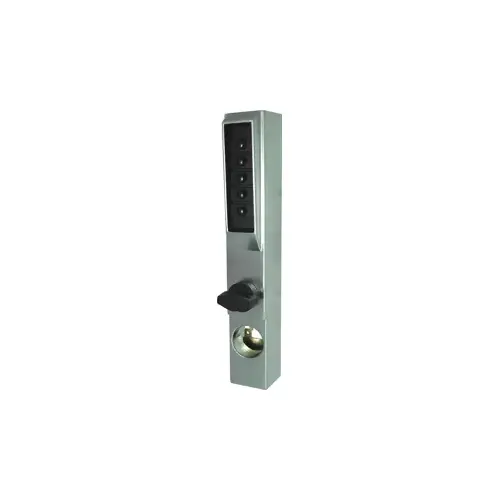

Kaba Access 3001-26D-41Click To Copy 3000 Series Mechanical Pushbutton Narrow Stile Lock, Satin Chrome

Narrow Stile Mechanical Push Button LockSimplex 3000 Series

Simplex mechanical pushbutton locks eliminate problems andcosts associated with issuing, controlling, and collecting keysand cards.

The Simplex 3000 mechanical pushbutton locks provides ex-terior access by combination for narrow stile aluminum glassdoors. This fully mechanical lock eliminates the material andlabor expense of battery replacements, has a single access-code and is programmed via the keypad without removing thelock from the door.

Features: No Battery:

• Fully mechanical lock eliminates the material and labor expense of battery replacements

Number of Codes:

• Single access code — one easy-to-manage code for all users.

Programming:

• Lock is easily programmed via keypad withoutremoving lock from the door.

Handing:

• Non-handed; required drive assembly is factory-handed, not field reversible.

Economical:

• A cost effective access control solution

Operation Modes:

• Pushbutton Access
• Passage - Allows access without using the lock entry code.Feature activated from the outside using cylinderoverride key
• Lockout - Disables the lock so that entry code cannot be usedto gain access. Access is permitted using the keyoverride only. This is activated from the outsideusing the cylinder override key.

Specifications: Construction:

• All metal cast front housing, force-resistant, clutch-protected fixed thumbturn

Numeric Keypad:

• Vandal resistant, solid metal pushbuttons

Stile Width:

• 1 7/8" (48 mm) minimum, required for mounting

Latch:

• Purchased separately (Adams Rite)

Cylinder:

• Key override with mortise cylinder (not included)

Backset:

• Model 3010: Right Hand; Right Hand Reverse 31/32" (25 mm)
• Model 3020: Left Hand; Left Hand Reverse 31/32" (25 mm)
• Model 3030: Right Hand; Right Hand Reverse 1 1/8" (29 mm) or 1 1/2" (38 mm)
• Model 3040: Left Hand; Left Hand Reverse 1 1/8" (29 mm) or 1 1/2" (38 mm)

Strike:

• Sold separately (dormakaba RCI, Adams Rite or Kaba Ilco Corp.)

Weight:

• 4lbs (1.8 kg)

Installation: Door Thickness:

• 1" (44mm)Maximum

Items Supplied Include:

• Installation instructions, full-scale template, combination change key, and screwdriver

Certification and testing: Durability:

• Weather resistant

Warranty:

• 1-year

Finishes:

• 626 - Satin Chrome Finish

• 695 Duranodic Powder Paint Finish
