This CRL Custom Cap Assembly is made to match your Custom Standoff Base, and is now available from the Manufacturing Division of CRL. As a result of customer requests for special lengths and finishes of Standoff Products, CRL provides custom fabrication of 1/2" (12 mm), 3/4" (19 mm), 1" (25 mm), 1-1/4" (31 mm), 1-3/4" (44 mm) and 2" (50 mm) standoff base and cap assemblies.
Available Finishes: Polished Stainless, Brushed Stainless, Satin Chrome, Polished Brass, Brushed Brass and Standard Powder Coated Colors.
The thread sizes for Custom Caps and Bases are:
For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.
For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter, drill and tap for 1/4"-20 screw thread.
For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter, drill and tap for 5/16"-18 screw thread.
For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8"-16 screw thread.
Custom Cap Thickness, unless noted otherwise, will be as follows:
For 1/4-20 and 5/16-18 threaded rods, the Cap will be 1/4" (6 mm) thick.
For 3/8-16 threaded rods, the cap will be 3/8" (10 mm).
All Threaded Rods included with Custom Caps will be 1-1/4" (32 mm) in length, unless noted otherwise. All Caps include two matching diameter washers and one grommet.
CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For more information contact our Technical Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

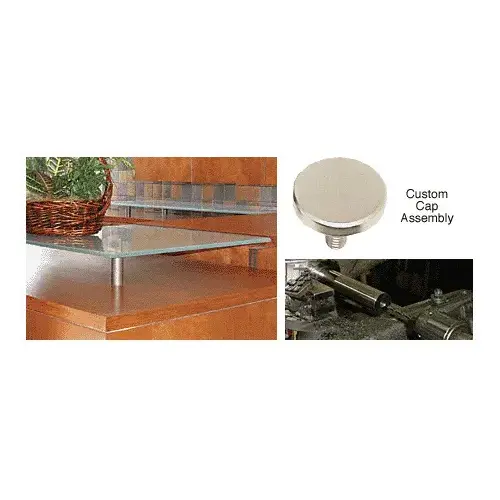

CRL CAP212CBS 316 Brushed Stainless 2-1/2" Diameter Custom Standoff Cap Assembly
Item #: CAP212CBS by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Made From 316 Stainless Steel and Available in Two Finishes
- Manufactured to Your Specifications
Diameter
2-1/2"
Thickness
Specify
Finish
Brushed Stainless Steel
Material
316 Stainless Steel
Thread Size
3/8-16
Finish/Color
Brushed Stainless Steel
Profile
Round
Product Overview
This CRL Custom Cap Assembly is made to match your Custom Standoff Base, and is now available from the Manufacturing Division of CRL. As a result of customer requests for special lengths and finishes of Standoff Products, CRL provides custom fabrication of 1/2" (12 mm), 3/4" (19 mm), 1" (25 mm), 1-1/4" (31 mm), 1-3/4" (44 mm) and 2" (50 mm) standoff base and cap assemblies.
Available Finishes: Polished Stainless, Brushed Stainless, Satin Chrome, Polished Brass, Brushed Brass and Standard Powder Coated Colors.
The thread sizes for Custom Caps and Bases are:
For less than 3/4" (19 mm) diameter, drill and tap for 10-24 screw thread.
For 3/4" (19 mm) to less than 1-1/4" (32 mm) diameter, drill and tap for 1/4"-20 screw thread.
For 1-1/4" (32 mm) to less than 1-1/2" (38 mm) diameter, drill and tap for 5/16"-18 screw thread.
For 1-1/2" (38 mm) diameter or greater, drill and tap for 3/8"-16 screw thread.
Custom Cap Thickness, unless noted otherwise, will be as follows:
For 1/4-20 and 5/16-18 threaded rods, the Cap will be 1/4" (6 mm) thick.
For 3/8-16 threaded rods, the cap will be 3/8" (10 mm).
All Threaded Rods included with Custom Caps will be 1-1/4" (32 mm) in length, unless noted otherwise. All Caps include two matching diameter washers and one grommet.
CRL Standoff Systems offer a complete range of mounting accessories that you can order in any quantity necessary for your project. For more information contact our Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
