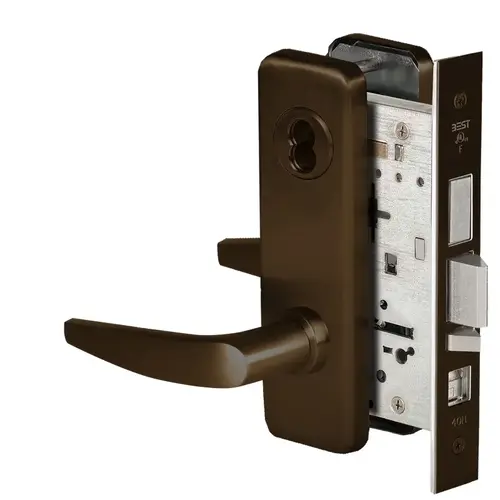

BEST 45H7AB16J690 Mortise Lock Dark Bronze Painted
Item #: 45H7AB16J690 by BEST
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Meets the intent of the standard for ANSI A117.1 section 404.2.6
- Auxiliary bolt: Stainless steel, non-handed.
- Backset: 2 3 /4”
- Case: 0.095” cold rolled steel, 5 7 /8” H x 7 /8” D x 4 1 /16” W. Steel is zinc dichromate plated for corrosion protection.
- Deadbolt: Stainless steel, 1” throw.
- Latchbolt: Solid stainless steel, 3 /4” throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
Thickness
1-3/4"
Strike Number
40HST1
Package Volume
336.375
Color
Dark Bronze Painted
Case Width
10.5"
Function
AB-Office
ANSI Function
F20 - Entry/Office
Hand
Field Reversible
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Dust Box
Plastic
Strike Width
1-1/4"
Cylinder Type
SFIC Prep Less Core
Lock Face Size
8" x 1-1/4"
Case Length
12.75"
Package Qty
1
Package Height
3"
Screws
Combination
Case Height
12.25"
Package Width
9.75"
Bolt Protection
3/4" Latch, 1" Deadbolt
Case Volume
1639.96875
Color Code
690/US20
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
J - Escutcheon
Strike Height
4-7/8"
Lever/Knob Design
16 - Lever
Package Length
11.5"
Office, Mortise Lock, 16 Lever, J Escutcheon, Dark Bronze
The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install.
The 45H Series is heavy duty in both protection and performance.
The Best 45H Series is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The BEST interchangeable core allows for customized master keying and quick keying changes.
