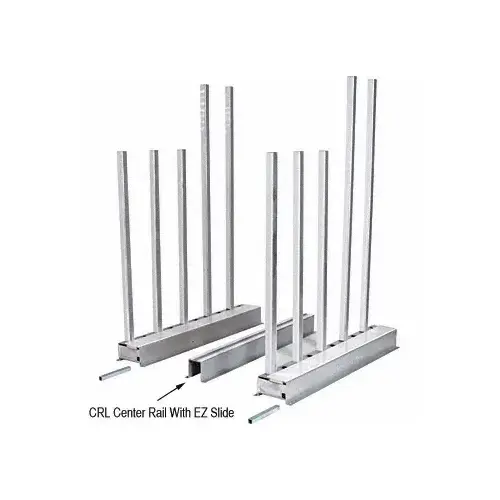

CRL 2005545 60" Long Center Rail EZ Slide Component

CRL Multi-Purpose Glass Storage Systems are designed for the upright storage of glass cases, glass (stoce) packs and loose lites. All components are protected with a Powder Coated Finish for durability.
Base Rails can be butted together in 60" (1.52 m) increments to form any length system required, and are predrilled with 1/2" (12.7 mm) holes for anchoring to shop floor. Base Rails are kept in alignment when butted together with a unique 1" (25 mm) square slip-joint tube that ensures a straight line is maintained.
Notes:
Dimensions: Rail Size: 11” x 5.5” x 60”
Center Rail Size: 4.5” (7.25” with flange) x 5.75”
Product Warning:

Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4's not included). Optional Easy Slide System (made of low friction material) can be mounted to the 2 x 4’s for extra protection

Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack

Complete with 11" connector tube for butting rails together in a straight line for desired length

Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom

2" square tube posts and 2" square rubber post caps to separate glass

Heavy-duty powder coated finish

Minimum of 2-degree angle when dropping stone in between posts.

.
