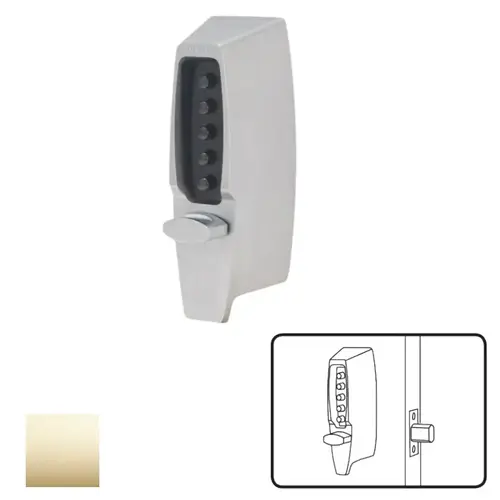

Kaba Access 7102-05-41 7100 Series Auxiliary Pushbutton Lock, Satin Brass Blackened
Item #: 7102-05-41 by Kaba Access
See reviewsSee reviews
In Stock
$215.25
/eachSAVE UP TO 21.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Construction: All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Field reversible
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm), wood or metal
- Durability: Weather resistant
- Warranty: 1-year warranty
- Backset: 2¾" (70 mm) or 2⅜" (60 mm) backset
Color
Satin Brass Blackened Satin Relieved Clear Coated
Package Qty
1
Color Code
609/US5
Lock Platform
Deadbolt Lock
Base Material
Brass
Finish
Satin Brass Blackened
Finish Description
Antique Brass
Function
2 - 1 Inch Tubular Deadbolt
Product Type
Push Button Lock
Series
7100 Series Simplex
ADA Approved
False
Minimum Stile Width
4 Inch
Manufacturer Parent
DormaKaba
Handing
Reversible
Locking Device
Deadbolt
Latch Throw
1 Inch
Hand
Reversible
Sub-Series
CL_Push_Button_Locks_kaba_access_28
ADA Compliant
No
Handle Type
Thumbturn
Application
Commercial; Residential; Industrial; Healthcare; Education; Military and Government; Utilities
Faceplate Type
Flat Front
Programming Method
Keypad
Function Family
Pushbutton Lock
Number of Access Codes
1
Lever Style
Thumbturn
Door Thickness
1-3/8" to 2-1/4"
Lock Dimensions
6-1/2" x 2-1/2"
Features
Vandal Resistant; Solid Metal Pushbuttons; Durability; Weather Resistant; No Battery
Product Material
Metal Cast
Backset
2-3/4 Inch
Warranty
1 Year
Included Components
Installation Manual; Full-Scale Template; Required Installation Hardware
Finish Family
Antique Brass
Product Overview
Simplex 7100 Series
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
FeaturesNo Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements Locking Device Option: 1" Tubular Deadbolt—must be manually relocked Number of Codes: Single access code - one easy-to-manage code for all users Programming: Lock is easily programmed via keypad without removing lock from the door Handing: Field reversible Operation Mode: Pushbutton Access Economical: A cost effective access control solution
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
