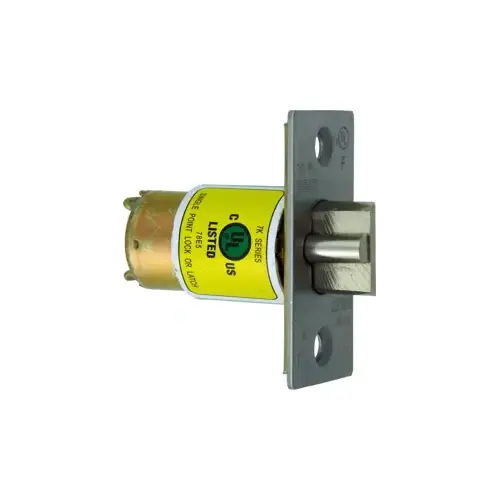

Stanley Best 7KCL3626 7K 2-3/4" Dead Latch Satin Chrome Finish
Item #: 7KCL3626 by BEST
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Offers Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.13 Grade 2
- Limited 3 Year Mechanical And Finish Warranty
Handing
Reversible
Finish
Satin Chrome
Backset
2-3/4" Backset
Color Code
626/US26D
Alternate Part Number-1
151680
7KC Series Part, 2-3/4" Deadlocking Latch, Satin Chrome
The 7KC Series has very versatile trims and has several finishes available too it your needs.
The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.
- Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
- Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
- Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
- Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
- Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
- Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
- Rose– D– 3 1/2" diameter mounting screws concealed.
- Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
- Door thickness– 1 3/8" to 2" .
NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
