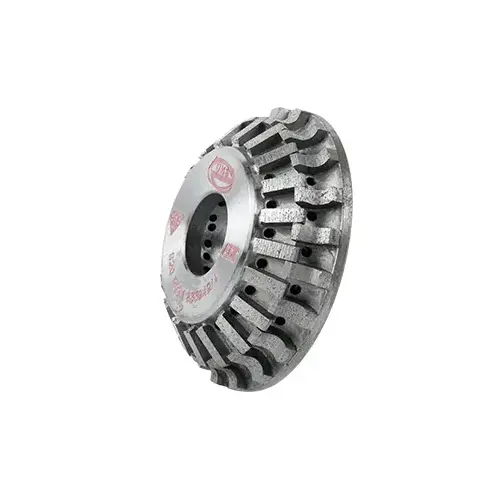

ADI 'Tilt Wheel' for 90 degree Built Up Edges 120 mm Diameter - Position 1

Roll over image to zoom in

CRL 43PB123335 ADI 'Tilt Wheel' for 90 degree Built Up Edges 120 mm Diameter - Position 1

Item #: 43PB123335 by CR Laurence

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Alternative to Using 90 Degree Mitre
  • For Use On CNC Machines
  • Position 1 (Profile B)
  • Alternative to Using 90º Mitre
  • Ultra High Speed
  • Larger Surface Area for Adhesive and a Sharper Edge so Less Need to Chamfer

Dimensions

120 (D) x 35 Bore

RPM Min-Max

800-1200

Feeding Speed U/min

800-1200

Stock Removal

To Shape

These CRL ADI Tilt Wheels allow a CNC machine to create the 45º mitre needed for built up edges that would normally have to be done on a bridge saw.
The main benefits of using these tools instead of the bridge saw are as follows:
Accuracy - The CNC will cut straight and accurately, unlike a bridge saw which can sometimes run off course due to the blades' natural flex.
Less Chipping - Bridge saw blades tend to chip the material, especially some granites. These tools will give a much better finish with very little chipping which means only a very small chamfer is required when the pieces have been assembled. Bigger chamfers that are often needed following a bridge saw cut will expose the joint line, therefore creating a less professional finish.
NOTE: RPM and feeding Speeds are for guidance purposes only.
