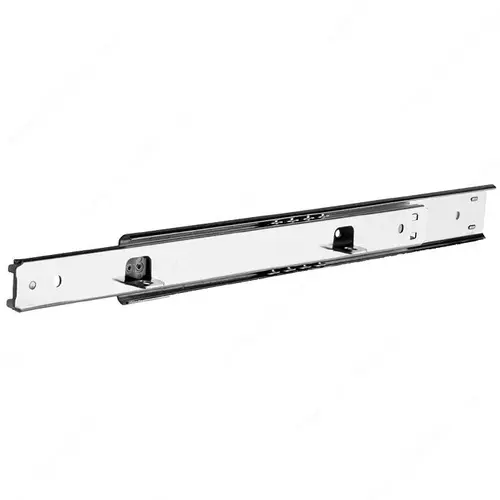

Accuride T20022G16 Series 2002 Two-Way Drawer Slide - 50 lb Pair
Item #: T20022G16 by Accuride
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Zinc
Length
16 in
Load Capacity
50 lb
Bearing Type
Ball Bearing
Partial Extension
3/4
Motion Technology
Two-Way Travel
Slide Extension
Partial Extension
Slide Mounted
Side Mounted
Product Overview
50 lb load capacity
- Two-way travel with 3/4 extension provides access from both sides of the unit.
- For pass-through shelves, kitchen islands, entertainment bars, medical carts, and other cabinetry that benefits from two-sided access.
- Internal detent secures the slide in a center/closed position.
- Simplified mounting tabs enable a shelf or drawer to be mounted directly onto the tab.
- All steel ball bearings.
- Maximum drawer width: 12"
- Features: Hold-in detent; center position
- Mounting: Side
- Capacity: 50 lb per pair (based on an 18" slide)
- Required space: 0.38 inch
Application
Residential, kitchen
Important Information
- No slide disconnect available for this series.
- Two-way travel with 3/4 extension provides access from both sides of the unit.
- For pass-through shelves, kitchen islands, entertainment bars, medical carts, and other cabinetry that benefits from two-sided access.
- Internal detent secures the slide in a center/closed position.
- Simplified mounting tabs enable a shelf or drawer to be mounted directly onto the tab.
- All steel ball bearings.
- Maximum drawer width: 12"
- Features: Hold-in detent; center position
- Mounting: Side
- Capacity: 50 lb per pair (based on an 18" slide)
- Required space: 0.38 inch
Application
Residential, kitchen
Important Information
- No slide disconnect available for this series.
