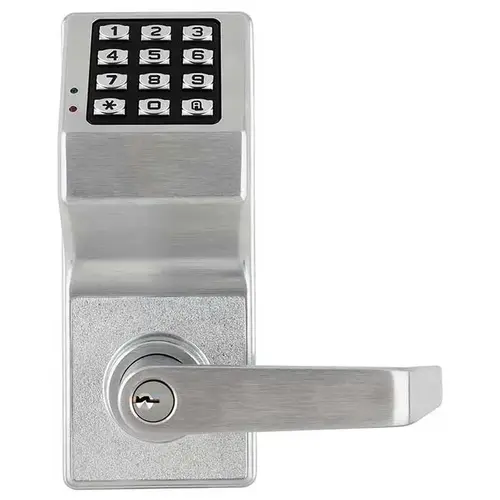

Alarm Lock DL6100IC-26D DL6100 Series Trilogy Networx Cylindrical Electronic Digital Lock Satin Chrome
Item #: DL6100IC-26D by Alarm Lock
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Chrome
Finish Description
Satin Chrome
Product Type
Access Control
Series
DL6 Series
Grade
ANSI/BHMA Grade 1
Application
Business; Campus; Healthcare; Office Security Management
Hand
Non-Handed
Backset
2-3/4 Inch
Handing
Non-Handed
Warranty
2 Year
Operating Temperature
-31 to 151°F
Color Code
626/US26D
Door Thickness
1-5/8 to 1-7/8 Inch
Cylinder Type
Interchangeable Core
Latch Throw
1/2 Inch
Strike Type
ASA; T Strike
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(4) C-Cell Batteries
Strike Size
1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"
Standards
BHMA Certified; UL Listed; FCC Certified
Features
Weatherproof; Standard ANSI A115 Series Prep; 12-Button Vandal-Proof Metal Keypad; 5000 User Codes; 35000 Audit Trail; 500 Scheduled Events; Battery 500000 Cycles; Programmable Relay
Manufacturer Parent
Napco Security Technologies
Sub-Series
DL6100IC-26D
Product Overview
DL6100Trilogy Network Digital Locks
Digital cylindrical lock supporting 5,000 pin user codes (3-6 digits), 500 scheduled events and 35,000 event audit log.
Specifications: Door Thickness:- Fits 1 5/8" to 1 7/8"
- 2 3/4" (2 3/8" also available)
- 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included
- UL Listed, fire rated 3 bonrs, 1/2" throw, reversible
- Non-handed
- All metal, 12 button. Basic functions programmed through keypad
- 4 C-cell batteries (included)
- Standard ANSI A115 Series prep, modified by adding additional through-bolt boles
- BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
- 6 pin solid brass. SCY1 keyway furnished with all key override locks Schlage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can be used with the HW620 tailpiece (supplied)
- Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
- 26D - Satin Chrome
