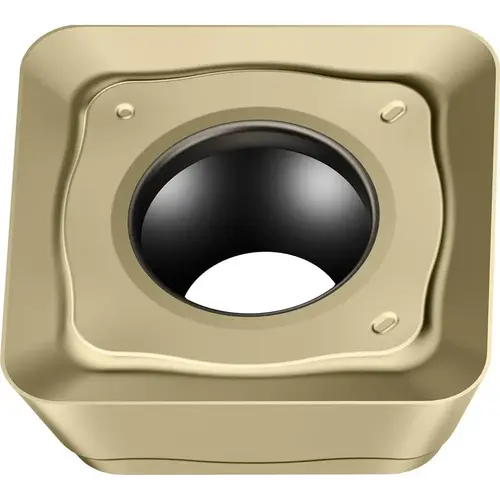

Milling Inserts; Insert Style: SPMT ; Insert Size: 060304 ; Insert Material: Carbide ; Insert Shape: Square ; Manufacturer Grade: WSP45G ; Corner Radius (Decimal Inch): 0.0157 - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7924352-XCP10 Milling Inserts; Insert Style: SPMT ; Insert Size: 060304 ; Insert Material: Carbide ; Insert Shape: Square ; Manufacturer Grade: WSP45G ; Corner Radius (Decimal Inch): 0.0157 - pack of 10

Item #: 7924352-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$199.50

/package
SAVE UP TO 19.95

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Length (mm)

6.35

Number of Cutting Edges

4

Thickness (mm)

3.1800

Cutting Direction

Neutral

Insert Material

Carbide

Series

SPMT

Coating Process

PVD

Coating/Finish

TiAlN/Al2O3/(ZrN)

Corner Radius (Decimal Inch)

0.0157

Length (Decimal Inch - 4 Decimals)

0.2500

Length (Inch)

1/4

Manufacturers Catalog Number

SPMT060304-F55 WSP45G

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1252

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500

Width (mm - 2 Decimals)

6.35

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2500

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2500

Insert Shape

Square

Chip Breaker

F55

Insert Style

SPMT

Insert Size Code

06

Relief Angle

11.000

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.8000

Cutting Edge Effective Length (Decimal Inch)

0.2500

Maximum Depth of Cut (mm)

6.35

Manufacturer Grade

WSP45G

Single or Double Sided Insert

Single

Cutting Edge Effective Length (mm)

6.35

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.40

Iso Code

SPMT060304-F55 WSP45G

Product Overview
Milling Inserts; Insert Style: SPMT ; Insert Size: 060304 ; Insert Material: Carbide ; Insert Shape: Square ; Manufacturer Grade: WSP45G ; Corner Radius (Decimal Inch): 0.0157
