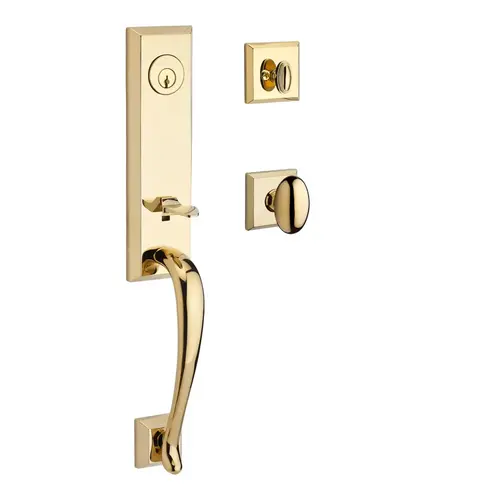

Baldwin SC-DEL-ELL-TSR-003 Del Mar Handleset with Ellipse Knob Bright Polished Brass
Item #: SC-DEL-ELL-TSR-003 by Baldwin
UPC #: 884011690241
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2.8889
Finish
Bright Polished Brass
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Keyway
Schlage C
Function
SC-Single Cylinder
Door Thickness
1-3/4" to 2"
Mount
3/4 Escutcheon
Handle Style
DEL-Del Mar
Knob Diameter
2.4375
Strike
SS-Square Corner
Bore Size
2.1250
Cylinder Type
Conventional Cylinder
Finish Description
Bright Polished Brass
Product Height
16-13/16 Inches
Knob style
ELL-Ellipse
Keyblank Grouping
BALD-SCHL-C-5-1
Rose/Escutcheon Trim
TSR-Traditional Square Rose
Keying Charges
Residential-Conventional
Product Material
Forged Brass
Product Type
Handleset
Series
Baldwin Reserve
Box Length
22.1300
Box Width
6.3800
Box Height
3.2500
Warranty
Lifetime Limited Mechanical/Finish
Color Code
003
Product Length
2-11/16 Inches
ADA Compliant
No
Finish Family
Polished Brass
Application
Residential
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA
Function Family
Single Cylinder Handleset
Features
6 Way Adjustable (6L) Front & Latch; Deadbolt Features 1" Throw Brass Bolt Latch; Grip Offers 1/2" Passage/Privacy Function Bolt; Knob/Lever Rotate At 55°- 60°; 5-1/2" Center to Center Tubular Bore
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
3.25"x6.38"x22.13"
Sub-Series
RL_Handlesets_baldwin_148
Product Overview
- Del Mar Handleset, with Ellipse Knob
- Solid forged brass construction
- Shown in Single Cylinder function. Other functions available
- Shown with Ellipse Knob and Traditional Square Rose, can be customized with other interior Reserve style knob, lever or rose
- To personalize your look, this Traditional inspired design is available in 7 finishes
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
- Accommodates 5-1/2" center to center dimension ONLY
- Accommodates door thickness 1-3/4" to 2". Up to 2-1/2" thick door with service part kit (8BR0701-xxx)
- Baldwin 5-pin C-Keyway standard. SmartKey Re-Key Technology optional
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors
- Handing only required when ordering lever interior style
- Functions available: single cylinder, double cylinder and full dummy
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
