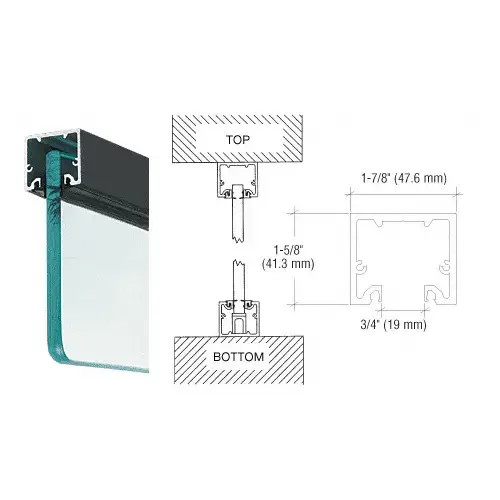

This CRL Wide U-Channel and Narrow Header was developed with three uses in mind: As a U-Channel that would be the same width as our Sidelite and Door Rails; as a Narrow Header that is the same width as our Sidelite and Door Rails, and will accept a top free-swinging pivot to secure the top of the doors; as an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication is done during the manufacturing process to save time and prevent the need for field fabrication. For additional information, contact DK Hardware Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL NH2BLCL Black Powder Coat Wide U-Channel With Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - Custom Length
Item #: NH2BLCL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available in Stock Lengths, Fabricated Headers, or Headers with Side Pockets for "Lift and Drop" Panel Glazing
- Matches Width of Door and Sidelite Rails and Accepts Roll-In Gasket, Top Pivot Block and Flush Snap-In Insert
- Special Sidelite Rail Adapter Allows for a Continuous Sight Line Using the Sidelite Rail in Conjunction with the Narrow Header
Length
Custom
Finish
Black
Height
1-5/8
Width
1-7/8
Glazing Thickness
3/8, 1/2
Finish/Color
Black Bronze Anodized
Product Overview
This CRL Wide U-Channel and Narrow Header was developed with three uses in mind: As a U-Channel that would be the same width as our Sidelite and Door Rails; as a Narrow Header that is the same width as our Sidelite and Door Rails, and will accept a top free-swinging pivot to secure the top of the doors; as an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication is done during the manufacturing process to save time and prevent the need for field fabrication. For additional information, contact DK Hardware Sales Department.
.
