The Complete Guide to Glass Door Hardware Sizing & Thickness for Winter Safety and Insulation

DK Hardware

Nov 5, 2025 • 4 min read

As temperatures drop, glass doors face new challenges — maintaining visual appeal while ensuring strength, efficiency, and user safety.

This guide of our Glass Door Hardware Sizing & Thickness explores how glass thickness, hardware load ratings, and weather seals work together to improve safety, insulation, and overall performance.

Why Does Glass Thickness Matter in Cold Weather?

Glass thickness affects more than appearance - it plays a vital role in thermal insulation, sound reduction, and energy efficiency. Thinner glass loses heat more quickly, often leading to condensation and discomfort. But with the thicker, correctly specified panel, stability reduces heat loss and creates a more comfortable indoor environment.

Recommended Glass Thickness by Application

Application	Ideal Thickness	Material Type	Key Winter Benefit
Interior Office Partitions	8–10 mm	Tempered	Lightweight; minimal thermal stress exposure.
Swing Doors (Interior/Showroom)	10–12 mm	Tempered or Laminated	Provides sound insulation and stability.
Exterior Entrances (Hotels, Retail)	12–15 mm	Laminated / Double Glazed	Reduces heat loss and withstands temperature changes.
Automatic or Sliding Doors	10–12 mm	Tempered	Combines smooth operation with safety and energy efficiency.

For winter installations, we recommend using laminated or double-glazed glass mainly to improve insulation and reduce condensation around entry points. Check out our collection here.

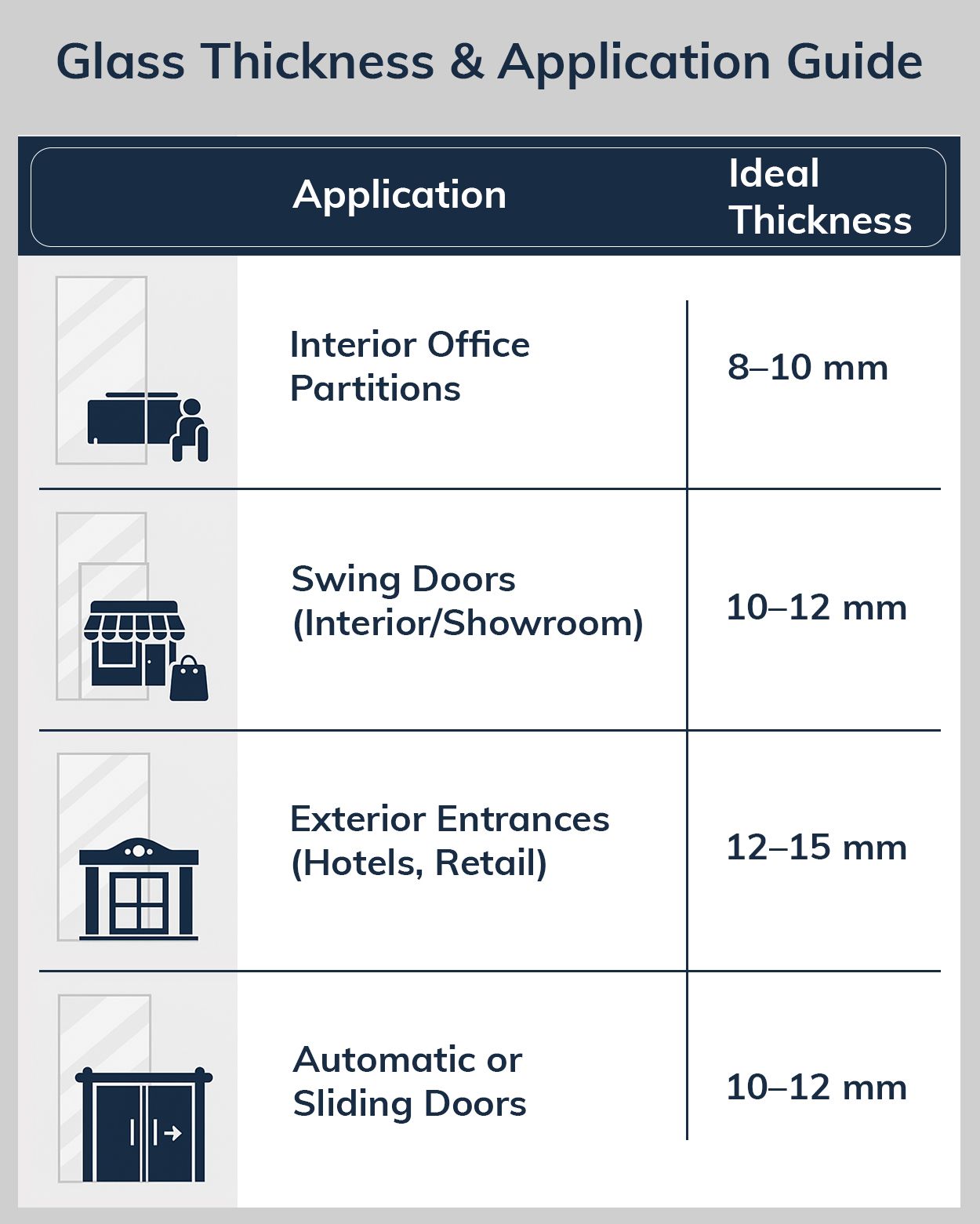

Recommended Glass Thickness by Application

Understanding Glass Weight and Hardware Load Capacity

Each millimetre of thickness increases the glass panel’s weight — and this directly affects your choice of hinges, floor springs, and patch fittings.

Improper load pairing is a leading cause of:

Door sagging
Misalignment
Seal gaps
Hinge wear
Glass stress fractures

Formula to Estimate Glass Weight

Weight (kg) = Glass area (m²) × Glass thickness (mm) × 2.5

Example:
A 2.1m × 0.9m glass door with 12mm glass weighs approximately:
2.1 × 0.9 × 12 × 2.5 = ~57 kg

So your hardware must support at least 60 kg per panel (add 10–15% safety margin).

Hardware Capacity and Sizing Reference

Glass Thickness	Door Weight	Recommended Hardware	Application
8 mm	~38 kg	Light-duty patch fittings, pivot hinges	Light traffic interiors
10 mm	~47 kg	60 kg-rated floor springs	Offices and showrooms
12 mm	~57 kg	Heavy-duty hydraulic hinges	Retail entrances
15 mm	~71 kg	90–100 kg-rated floor springs	Hotels and large glass doors
19 mm	90+ kg	Custom-engineered pivots	Oversized or specialty systems

Advice: You always need to confirm hardware ratings. DK Hardware’s heavy-duty floor springs and hinges are tested for loads above 100 kg, ensuring long-term performance for thicker, insulated glass.

Weather Seals: The Key to Winter Efficiency

Even the best glass and hardware system won’t perform well without proper weather seals.
These components prevent air leakage, condensation, and energy loss, keeping interiors comfortable while reducing HVAC strain.

Top Weather Seal Options for Glass Doors

Type	Best For	Key Benefit
Silicone Gaskets	Frameless glass	Flexible and transparent; maintains seal in low temperatures.
Magnetic Seals	Double doors	Creates an airtight fit; excellent for lobby entrances.
Brush or Fin Seals	Sliding - systems	Blocks fine dust and wind drafts.
Automatic Drop Seals	Swing doors	Seals the bottom gap automatically; ideal for external doors.
Threshold Gaskets	Pivot doors	Adds floor-level insulation and reduces vibration.

Note: Do select EPDM(ethylene propylene diene monomer rubber) or silicone seals rated for -20°C to -40°C to ensure flexibility and prevent cracking of the glass during this cold weather.

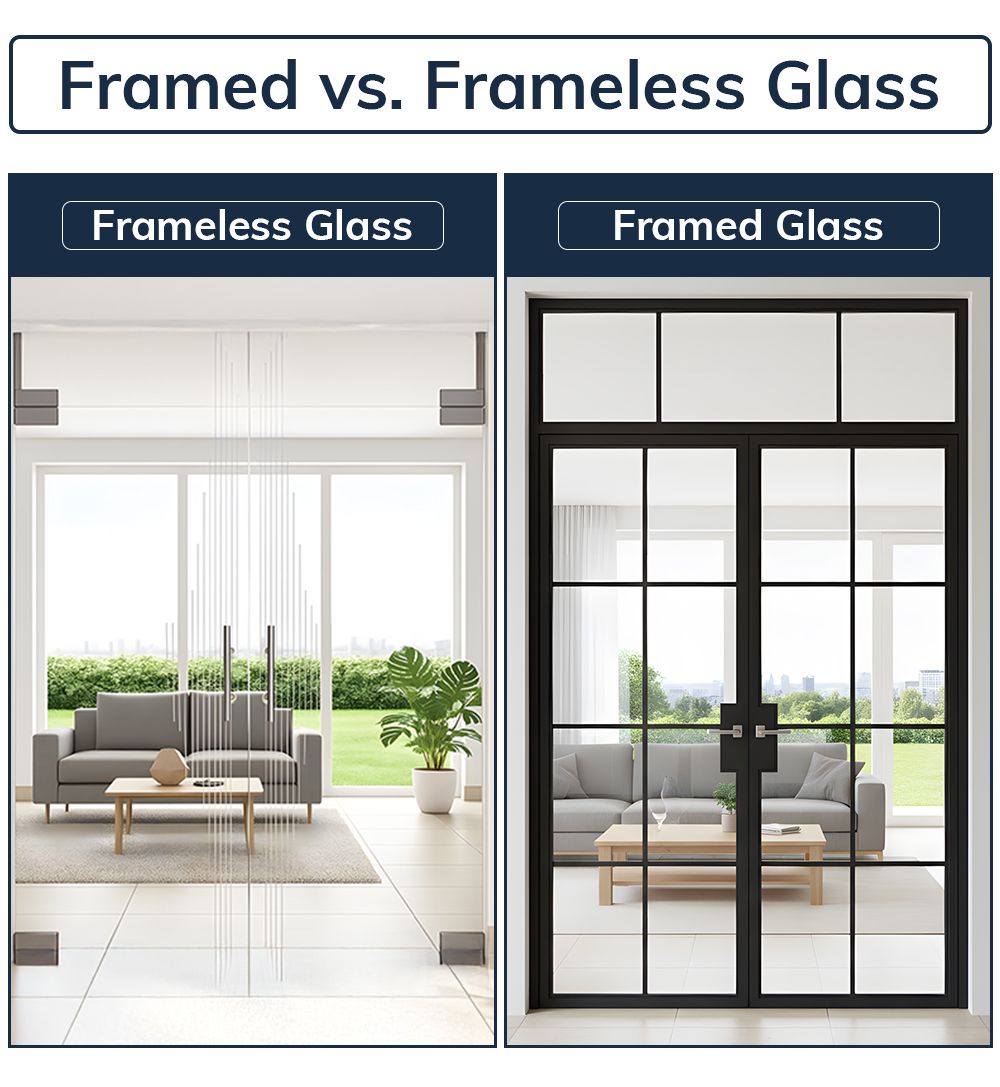

Framed vs. Frameless Glass

It’s the classic design debate on framed vs. frameless glass doors. Both styles have distinct advantages, but when it comes to winter performance and energy efficiency, the winner often depends on where and how the door is installed.

For exterior use or temperature-sensitive zones (like hotel lobbies or retail entryways), choose:

Thermal-break aluminium frames with polyamide inserts.
Double glazing with argon-filled cavities.
Anti-condensation coatings for clear, fog-free performance.

Design Insight: Use concealed floor springs and slim patch fittings to retain a clean aesthetic while ensuring thermal efficiency.

Checklist for Winter Maintenance & Safety

Prepare Your Doors for Winter

Before the cold season sets in, schedule a full inspection of your door system. Regular maintenance not only ensures smooth operation but also extends the life of your hardware.

Hardware & Glass Checks

Look for cracks, chips, or edge damage on the glass
Confirm proper hinge alignment and tension
Lubricate all moving parts with cold-rated grease
Ensure correct glass-to-metal clearance to prevent binding

Seal & Insulation Checks

Replace any worn or hardened seals
Test for air leaks using a smoke stick or candle
Inspect threshold gaps and confirm level alignment
Tighten all fittings to minimize vibration and wear

Maintenance Tip:
Use lubricants and sealants rated for low temperatures—these stay flexible in the cold and help prevent sticking or jamming when temperatures drop.

Energy Efficiency and Cost Savings

According to the U.S. Department of Energy, up to 30% of building heat loss occurs through poorly sealed doors and windows.

Upgrading to:

Thicker glass (12–15mm)
Insulated door hardware systems
Weather-tight seals

It can drastically improve thermal efficiency, reduce HVAC load, and cut down on utility costs during winter. For high-traffic areas, this investment often pays for itself within a single season.

Shop Winter-Ready Glass Door Hardware

Cold weather exposes weak hardware fast. Prepare your space for the cold season with glass door hardware designed for strength, safety, and year-round performance. Choosing the right components, like door thickness, hinge capacity, and proper sealing, ensures lasting comfort and protection from the elements.

At DK Hardware, you’ll find a complete selection of dependable fittings, including:

Heavy-Duty Floor Springs (support up to 100kg)
Patch Fittings and Pivot Hinges
Silicone and Magnetic Weather Seals
Double-Glazed Door Kit

Each piece is built for durability and smooth operation, providing reliable performance and energy efficiency through every season.
