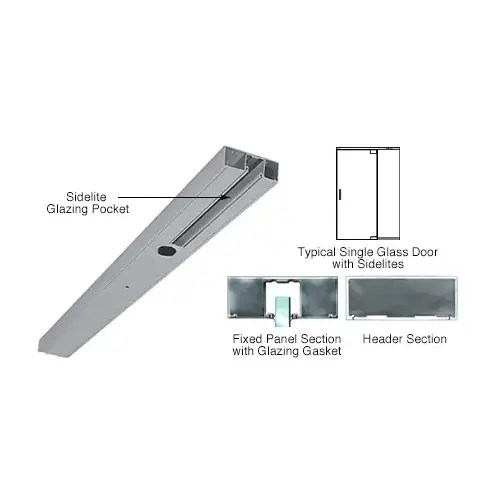

Many times installations dictate the need for a door, or pair of doors, with sidelites on either side. In the past if you used a Header on top for your Overhead Door Closers, you had to adapt a different extrusion next to your Header to secure the top of the sidelites. CRL has developed a snap-in insert with a glazing pocket that snaps in on either side of the doors. This allows you to use one continuous Header with the center fabricated for the doors, and the sides fabricated for fixed sidelites. Glass is secured in the extrusion with the provided Top Load Roll-in Gasket. To secure the bottom of the fixed sidelites, use our UC38 Series U-Channel available in five finishes: Clear Anodized, Duranodic Bronze, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass. Contact DK Hardware Sales Department.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL DCH1SBSC Brushed Stainless Custom Length 4-1/2" One Pocket Single Sided Door Header
Item #: DCH1SBSC by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available in 4" or 4-1/2" Widths for 3/8" or 1/2" Glass
- Available in One or Two Pocket and as a Single or Double Sided Header
Finish
Brushed Stainless Steel
Length
Custom
Width
4-1/2
Glazing Thickness
3/8, 1/2
Finish/Color
Brushed Stainless Steel
Height
1-3/4
Configuration
Glass Pocket-Single
Product Overview
Many times installations dictate the need for a door, or pair of doors, with sidelites on either side. In the past if you used a Header on top for your Overhead Door Closers, you had to adapt a different extrusion next to your Header to secure the top of the sidelites. CRL has developed a snap-in insert with a glazing pocket that snaps in on either side of the doors. This allows you to use one continuous Header with the center fabricated for the doors, and the sides fabricated for fixed sidelites. Glass is secured in the extrusion with the provided Top Load Roll-in Gasket. To secure the bottom of the fixed sidelites, use our UC38 Series U-Channel available in five finishes: Clear Anodized, Duranodic Bronze, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass. Contact DK Hardware Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
