Brushed Stainless Custom Length 4-1/2" Two Pocket Double Sided Door Header

Roll over image to zoom in

CRL DCH2DBSC Brushed Stainless Custom Length 4-1/2" Two Pocket Double Sided Door Header

Item #: DCH2DBSC by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Available in 4" or 4-1/2" (101.6 or 114.3 mm) Widths
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Available in One or Two Pocket and as a Single or Double Sided Header

Finish

Brushed Stainless Steel

Configuration

Glass Pocket-Pair-Glass Pocket

Height

1-3/4

Finish/Color

Brushed Stainless Steel

Glazing Thickness

3/8, 1/2

Width

4-1/2

Length

Custom

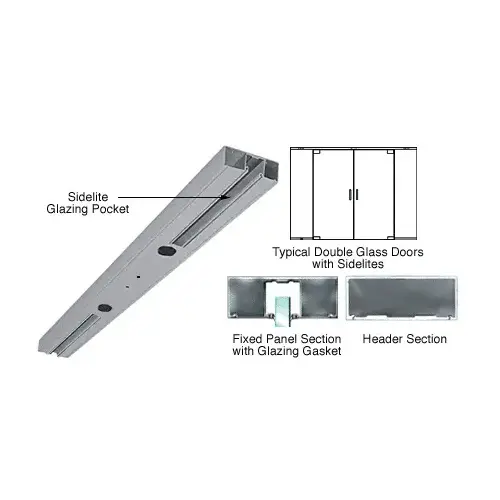

Many times installations dictate the need for a door, or pair of doors, with sidelites on either side. In the past if you used a Header on top for your Overhead Door Closers, you had to adapt a different extrusion next to your Header to secure the top of the sidelites. CRL has developed a snap-in insert with a glazing pocket that snaps in on either side of the doors. This allows you to use one continuous Header with the center fabricated for the doors, and the sides fabricated for fixed sidelites. Glass is secured in the extrusion with the provided Top Load Roll-in Gasket. To secure the bottom of the fixed sidelites, use our UC38 Series U-Channel available in five finishes: Clear Anodized, Duranodic Bronze, Polished Stainless Steel, Brushed Stainless Steel, Polished Brass. Contact DK Hardware Sales Department.

.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
