CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.
Product Warning:
These fittings are not for use with Laminated Glass.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

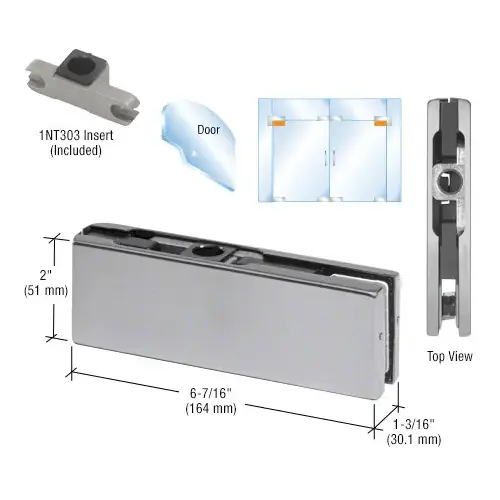

CRL PH20ABS Brushed Stainless Top Door Patch Fitting With 1NT303 Insert
Item #: PH20ABS by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 3/8" or 1/2" (10 or 12 mm) Glass
- With or Without Locks
- 2-3/4" (70 mm) Pivot Setback
- Use Monolithic Tempered Glass
Shipping Weight
1 lb (454g)
Finish
Brushed Stainless
Maximum Panel Weight (Pounds)
194
Pivot Backset (Inches)
2-3/4
Height
2
Maximum Width
42
Works with
1NT303
Glazing Thickness
3/8 , 1/2
Length
6-7/16
Finish/Color
Brushed Stainless Steel
Maximum Door Height
102
Type
Top
Insert Type
1NT303
Maximum Panel Weight
194 lbs. (88 kg)
Pivot Setback
2-3/4
With Insert
Yes
Product Overview
CRL Top Gate Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the gate's glass panel, and requires a hole and cut-out in the glass. Available in brushed stainless steel finish, it comes complete with instructions and a glass cut-out template.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Do Not Use With:
PH42L, PH42R, PH43L or PH43R Transom Patch Fittings. They Require European Door Patch Fitting PH21A.
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
