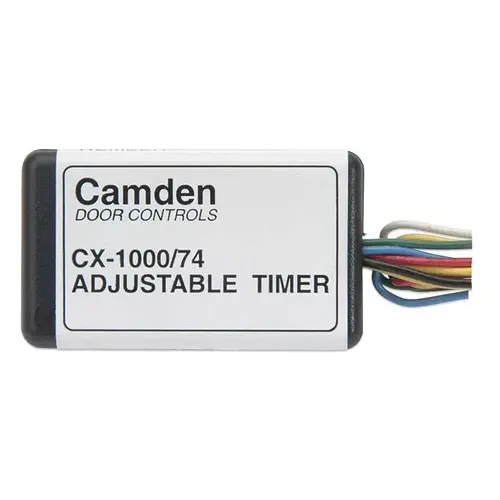

Camden Door Controls CX-1000/74 Micro Minder Timer Delay
Item #: CX-1000/74 by Camden Door Controls
See reviewsSee reviews
In Stock
$52.39
/eachSAVE UP TO 5.24
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
139075
Voltage
12V AC, 12V DC, 24V AC, 24V DC
Function
Time Delay Module
Mounting Type
Double Sided Foam Tape
Application
Ideal for Control of Automatic Door Operators or De-Energizing Electrified Locks Such as Strike or Magnetic Lock. Used Where Ac and Dc Operation is Required or Where An Unprotected Circuit Board Timer May be Subject to Damage
Warranty
3 year
input type
N/O Dry Contact
Product Height
2-1/4 Inch
Product Width
1-1/4 Inch
Time Delay
1 to 30 sec
Contact Ratings
3 A at 24 VDC
Product Depth
3/4 Inch
Features
Ultra Compact Design; Adjustable Delay From 1-30 Seconds; Color-Coded Leads and Plastic Case
Product Type
Electronic Part/Accessory
Series
CX Series
Manufacturer Parent
Camden Door Controls
Output Type
SPDT Form C
Sub-Series
CX-1000/74
Height
1.57
Length
4.72
Width
3.15
Product Overview
Camden Door Controls MicroMinder
CX-1000/74
Camden's ultra compact and affordable CX-1000/74 is a flexible and easy to operate 'delay on release' timer. The delay time is adjustable from 1 to 30 seconds via a simple potentiometer.
Applications: Ideal for control of automatic door operators or (de) energizing electrified locks such as strike or magnetic lock. Used where AC and DC operation is required or where an unprotected circuit boardtimer may be subject to damage.
| Voltage: | 12/24V AC/DC |
| Current Draw: | 20mA idle 33mA operating |
| Response Time: | .03 Seconds |
| Input: | N/O dry contact |
| Output: | Form ‘C’ (SPDT) |
| Contact Rating: | 3A @ 24V DC |
| Electrical Life | 100,000 @ Rated Capacity |
| Time Delay | 1 - 30 Seconds |
| Dimensions | 2-1/4" L x 1-1/4" W x 3/4" H (57mm x 32mm x 19mm) |
| Mounting | Double Sided Foam Tape |
| Enclosure | Black Styrene Plastic |
