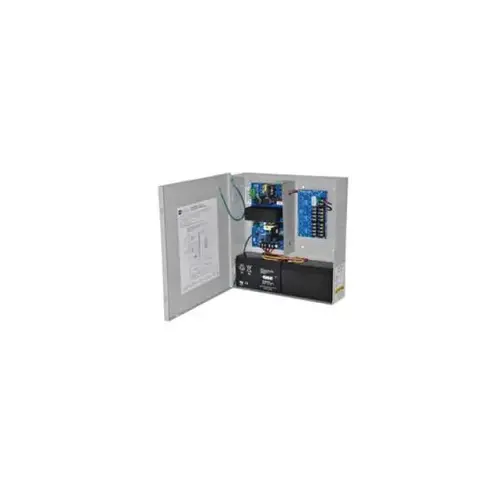

Altronix AL-400ULPD8CB AL-400 Hardwired Power Supply

AL400ULX SeriesPower Supply/Chargers

Altronix AL400ULX series power supply/chargers convert a 115VAC, 60Hz input into a single fused, four (4), eight (8) or sixteen (16) fuse or PTC protected outputs. Outputs are selectable for 12VDC with a total of 4A max. or 24VDC with a total of 3A max.

Key Features:

• Available with 1, 4, 8 or 16 outputs

• Fused or PTC ptotected outputs

Supervision:

• AC Fail
• Battery Fail and Battery Presence

• Built-in charger for sealed lead acid or gel type batteries

• Instantaneous transfer to stand-by batteries

• Short circuit and overload protection

• AC input and DC output options

• AC input and DC output options

• CSFM and MEA Approved

• Lifetime Warranty / Made in the U.S.A

• All units are available in grey or red enclosure*
• *AL400ULXJ's enclosure is red. For grey enclosure order model AL400ULXJG

Specifications: Input:

• Voltage - 115VAC, 60Hz, 3.5A max.
• Fusing - 5A / 250V.

Outputs:

• Voltage - 12VDC or 24VDC selectable.
• Current - 4A @ 12VDC or 3A @ 24VDC continuous max.
• Protection - Fused 3.5A / PTC 2.5A.
• Other - Overvoltage protection. Filtered and regulated.

Back-up Battery (not included):

• Capacity
  • - 7AH / 12VDC (1 or 2 within enclosure)
  • - 12AH / 12VDC (requires larger "X" enclosure)
  • - 18AH / 12VDC (requires larger "J" enclosure)
  • - 40 AH / 65 AH (requires separate enclosure)
• Type - Sealed lead acid or gel type.
• Fuse - Rating 15A @ 32VDC.
• Failover - Upon AC loss, instantaneous.

Supervision:

• AC Failure - Form "C" contacts.
• Battery - Form "C" contacts.

Indicators (LED):

• Input - 115VAC is present.
• DC Output - Powered.
• Battery - Discharged or not connected.

Agency Listings: All Models:

• UL294 - Access Control System Units.
• UL603 - Power Supplies for Use with Burglar-Alarms Systems.
• UL 1069 - UL Listed Hospital Signaling and Nurse Call Equipment.
• UL1481 - Power Supplies for Fire Protective Signaling Systems.
• cUL - CSA C22.2 No.205 - Signal Equipment.

AL400ULX and AL400ULXX only:

• CSFM - California State Fire Marshall Approved.
• MEA - NYC Department of Buildings Approved.
• FM - Factory Mutual Approved.

Physical and Environmental: AL400ULX, AL400ULPD4(CB), AL400ULPD8(CB):

• 13.5" x 13" x 3.25" (H x W x D)
• (342.9mm x 330.2mm x 82.55mm)

AL400ULXX, AL400ULXPD16(CB):

• 15.5" x 12" x 4.5" (H x W x D)
• (393.7mm x 304.8mm x 114.3mm)

AL400ULXJ:

• 18" x 14.5" x 4.625" (H x W x D)
• (457.2mm x 368.3mm x 117.48mm)

Temperature:

• Operating - 32°F to 120°F (0°C to 49ºC).
• Storage - -4°F to 158°F (-20°C to 70ºC).

Relative Humidity:

• 85% +/-5%.

BTU/Hr (approx.):

• 12VDC - 25 BTU/Hr.
• 24VDC - 37 BTU/Hr.

Product / Shipping Weight (approx.): AL400ULX:

• Product Weight - 6.95 lbs. (3.15 kg)
• Shipping Weight - 8.75 lbs. (4.0 kg)

AL400ULXX:

• Product Weight - 8.55 lbs. (3.88 kg)
• Shipping Weight - 10.85 lbs. (4.92 kg)

AL400ULXJ(G):

• Product Weight - 11.5 lbs. (5.22 kg)
• Shipping Weight - 13.7 lbs (6.21 kg)

AL400ULPD4(CB):

• Product Weight - 7.1 lbs. (3.22 kg)
• Shipping Weight - 8.9 lbs (4.04 kg)

AL400ULPD8(CB):

• Product Weight - 7.2 lbs. (3.27 kg)
• Shipping Weight - 9.0 lbs (4.08 kg)

AL400ULXPD16(CB):

• Product Weight - 7.3 lbs. (3.31 kg)
• Shipping Weight - 9.1 lbs (4.13 kg)
