Cansec Systems Ltd CA-CLAUSBClick To Copy USB Series Communication Device

USB Serial Communications Device. RS-485 to USB converter.
CLAUSBCommunication Device

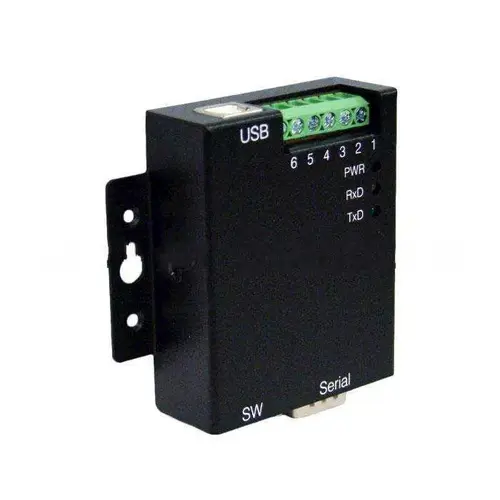

The CLAUSB is designed to make serial port expansion quick and simple. It is designed with an external 4-pin DIP switch to set RS-232, RS-422 or RS-485 mode conveniently, without the need to open the metal chassis. Both a 6-pin terminal block and a DB9 male connector are available for optimal flexibility for serial connection. Compatible with DIN-rail mounting for industrial applications. Complete drivers support Windows 98, ME, 2000, 2003, XP, Windows 7, 8 and Vista.

Features & Benefits:

• Metal case

• DIN-rail mountable

• External DIP switch to select different modes without the need to open chassis

• Both terminal block & DB9 connector

• Adds one RS-232, or RS-422, or RS-485 serial port by connecting to a PC by connecting to its USB port

• Speed up to 38.4 kbps

• Powered by USB port. No external power supply required

• Includes: USB cable & Driver

• Supports SmartLock Pro, SmartLock Pro Plus, H1000 and CP40 controllers

Specifications: Ports:

• 1 RS232/422/485 port

Speed:

• Up to 38.4 kbps

RS232 signals:

• TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS422/485 signals:

• RS422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND RS485 Data+/-, GND

Power:

• USB Bus powered, no external power supply required

Driver:

• Windows 98, ME, 2000, XP, 2003 Server, Vista, Windows 7 and 8

Connectors:

• 1 DB9 male and terminal block

Dimensions (W×L×H):

• 57 x 72 x 22 mm
• 82 x 77 x 22 mm with DB9 connector and mounting tabs

Warranty:

• 1 year

Part Number:

• CA-CLAUSB
