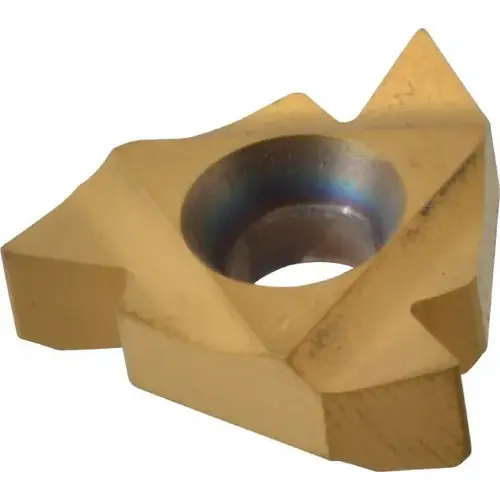

Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Carmex 22IRN60BXC Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide Coated

Item #: 22IRN60BXC by Carmex

See reviewsSee reviews
See reviews summary
In Stock

$49.83

/each
SAVE UP TO 4.98

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thread Type

Internal

Standards

CE

Threads Per Inch

7-5

Included Angle

60

Insert Material

Solid Carbide

Coating Process

PVD

Coating/Finish

Coated

Primary Workpiece Material

Universal

Primary Workpiece Material Code

H

Thickness (Decimal Inch - 4 Decimals)

0.1870

Vendor Drop Ship

N

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5000

Insert Style

22IR

Insert Size Code

22

Inscribed Circle (Inch)

1/2

Pitch (mm)

3.50 to 5.00

Manufacturer Grade

BXC

ISO 14001

2015

ISO 13485

2016

Product Overview
Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide TiN Finish, Right Hand Internal Partial Profile 60 degree Thread, 7-5 TPI, 1/2" Inscribed Circle, 0.187" Thick
