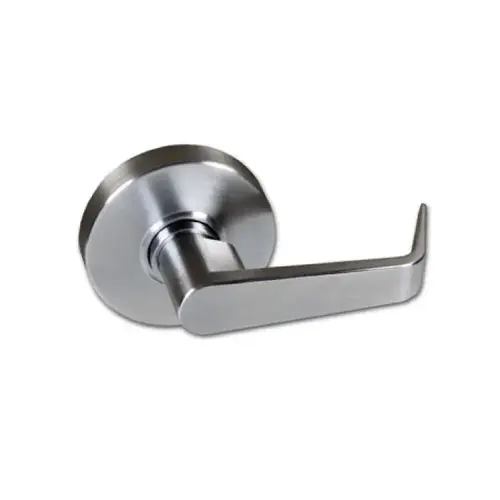

Command Access Technologies CL180-EU-L6-24V-626-REX Electrified Cylindrical Lockset Satin Chrome
Item #: CL180-EU-L6-24V-626-REX by Command Access
See reviewsSee reviews
HURRY! Low in stock
$355.51
/eachSAVE UP TO 35.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
24V (AC/DC)
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 1
Backset
2-3/4 Inch
Keyway
Schlage C
Function
Fail Secure w/REX
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Cylinder Type
Conventional Cylinder
Finish Description
Satin Chrome
Lever Style
L6-Bent
Keyblank Grouping
SCHL-C-6-1
Rose/Escutcheon Trim
Round Rose
Keying Charges
CCAM
Product Type
Electronic Cylindrical Lock
Series
CL Series
Power Consumption
3W
Warranty
3 year
Color Code
626/US26D
Finish Family
Satin Chrome
Standards
UL Listed
Function Family
Fail Secure
Features
Continuous Duty Solenoids Allow for "Continuously On" Applications Such as Fail Safe or An Unlock Cycle; Plug-in Bridge Rectifier; Low Current Draw Clutching Lever; Available SFIC
Lock Type
Fail Secure
Amperage
150mA @ 24V
Manufacturer Parent
Command Access
Resistance Properties
159 ohm
Sub-Series
CL180-EU-L6-24V-626-REX
Product Overview
CL180-EUElectrified Cylindrical Lockset
(fail safe)
(fail secure)
The Command Access CL1 is a high quality grade 1 cylindrical lock with the look and feel our customers have come to expect from leading brands, but at a significantly lower price. The CL1 is an ideal solution for that project where a "brand name" electrified product is not specified or required yet a high quality and economical solution is desired. You can install this lock with the confidence of knowing that the CL1 meets or exceeds the high standards of our other grade 1 modifications and carries the same no hassle 3-year warranty.
- UL Listed
- Grade 1
- 12 or 24 VDC
- Low Current Draw
- 3-Year Warranty
- Continuous duty solenoids allow for "continuously on" applications such as Fail Safe or an unlock cycle
- Plug-in bridge rectifier that allows for an AC or DC power source
- Low current draw Clutching lever design
- Available SFIC
- Available with Schlage C type keyway standard
- No hassle 3-Year Warranty
- Available Fail Safe (Electrically Locked) or Fail Secure (Electrically Unlocked)
- 12V or 24V (AC/DC)
- Request to Exit or AE switch available (on all functions)
- Current Reduction Unit to improve solenoid life in "continuously on" applications
- 12 or 24VAC/DC (+or- 10%)
- (must specify 12 or 24 volts when ordering)
- 12V = 250 mA / 24V = 150 mA
- 3 watts
- 12V = 49 Ω / 24V = 159 Ω
- 612, 613, 625 & 626
- L6, L7, L17
(fail safe)
- Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
(fail secure)
- Outside lever unlocked (EU) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
