CRL BFW2C Custom Color and Size Manual Projected Bi-Fold Service Window
Item #: BFW2C by CR Laurence
Item Discontinued!30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Available in Stock or Custom Sizes, and Stock or Custom Finishes
- Drawings and Specifications are Available
- Select From Manual or Semi-Automatic Operation
Overall Size
Specify Size
Service Opening Height
Specify Size
Service Opening Width
Specify Size
Service Opening Size (W x H)
Custom Model - Must Specify
Overall Size (w x h)
Custom Model – Must Specify
Window Type
Projected Manual
Finish
Custom
Material
Aluminum, Stainless Steel
Window Style
Flush Mount Manual
Size
Custom
Glazing Thickness
1/4
Finish/Color
Custom

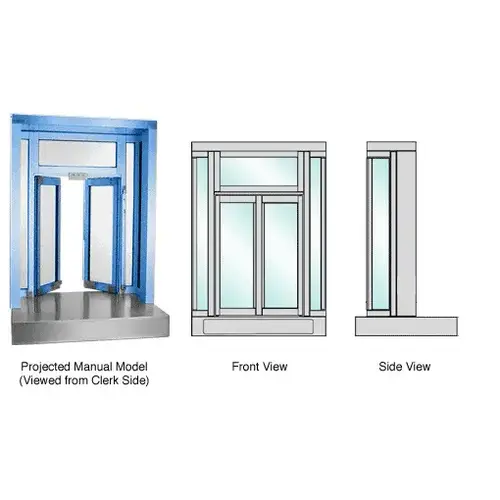

CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations: MANUAL- Both panels move simultaneously as either panel is manually operated. SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Stainless Steel Sill
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Manual
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
.
