CRL C0SWP Custom Powder Painted (Specify) Aluminum Clamp-On Frame Multi-Lite Window

1 reviews

Item #: C0SWP by CR Laurence

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you are satisfied with our products and excellent customer service.

CRL C0SWP Custom Powder Painted (Specify) Aluminum Clamp-On Frame Multi-Lite Window

1 1 reviews
  • Clamp-On Frame with Shelf and Deal Tray Designed for Arenas, Stadiums, Theaters, Etc.
  • Drawings and Specifications are Available Online

Wall Opening Size (W x H)

Customer to Specify

Finish

Custom Powder Painted

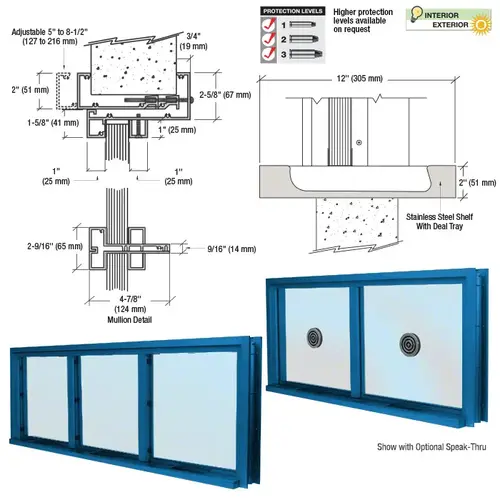

CRL Multi-Lite Clamp-On Frame Windows are commonly used for installations with multiple workstations, such as those found in walk-up ticket offices in arenas, stadiums, movie theaters, and check-cashing stores. Window options include speak-thrus, deal trays, shelves, drop downs, transoms, and more. Clamp-On Frame is designed for installation into walls from 5" to 8-1/2" (127 to 216 mm) thick. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf-Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
