CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations: MANUAL - Both panels move simultaneously as either panel is manually operated. SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Self-Closing
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

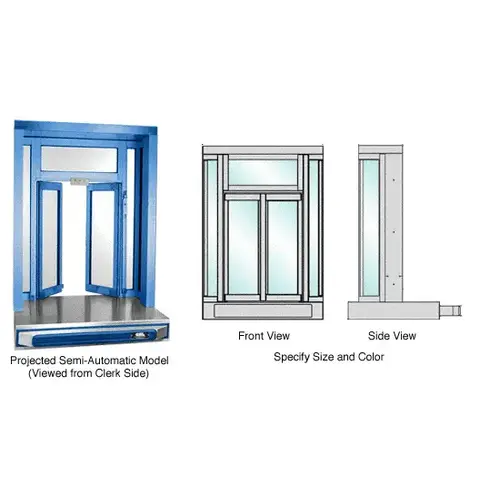

CRL SCBFW2C Custom Self-Closing Projected Mount Bi-Fold Service Window Specify
Item #: SCBFW2C by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Select from Manual or Semi-Automatic Operation
- Hip-Activated Opening Feature
- Self-Closing
- Custom Size and Finishes Available
- Drawings and Specifications are Available
Service Opening Height
Specify Size
Overall Size (w x h)
Custom Model - Must Specify
Service Opening Width
Specify Size
Overall Size
Specify Size
Window Type
Projected Semi-Automatic
Service Opening Size (W x H)
Custom Model - Must Specify
Finish
Specify
Material
Aluminum
Window Style
Projected Semi-Automatic
Size
Specify
Glazing Thickness
1/4
Glazing Type
Clear Tempered
Finish/Color
Specify
Glazed
Yes
Product Overview
CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations: MANUAL - Both panels move simultaneously as either panel is manually operated. SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Self-Closing
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
