This sleek, contemporary CRL Jackson Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" (1.22 m) standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
Standard Height 84" (2.13 m) - Extension Available
Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

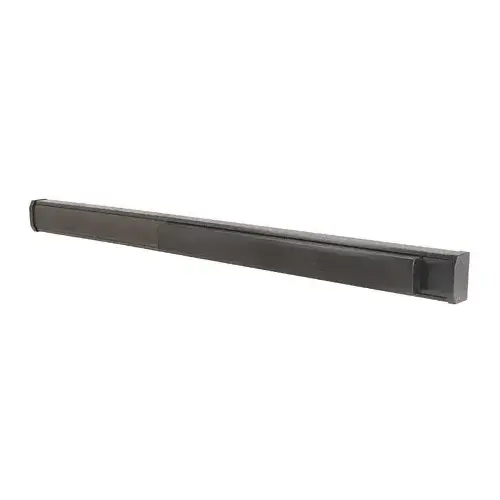

Jackson 311285R4313 Dark Bronze 48" 1285 Push Pad Concealed Vertical Rod Right Hand Reverse Bevel Panic Exit Device
Item #: 311285R4313 by Jackson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Suitable for Use with Narrow, Medium and Wide Stile Doors
- "Soft-Touch" Smooth Action Push-Pad
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
Size
48" (1.22 m)
Brand
Jackson
Type
Concealed Vertical Rod
Handing
Right Hand Reverse Bevel (RHR)
Finish
Dark Bronze
Door Height
84
Certification
ANSI/BHMA 156.3
Finish/Color
Dark Bronze
Series
1200
Panic Bar Width Net
46.5
Push Pad Width
24
Material - Mechanical Components
Stainless and Hardened Plated Steel
Recommended Door Type
Aluminum Narrow,Medium,Wide Stile And Hollow Metal
Minimum Stile Width (Inches)
1-3/4
Tall Door Extention Rods
301347301348
Material - Housing
Aluminum
Panic Bar Base Height (Inches)
3-3/16
Panic Type
Concealed Vertical Rods
Replacement Parts
302861,30821J313
Material - End Cap
Aluminum
Material - Latch & Strike
Sintered Steel
Panic Bar Projection (Inches)
2-7/8
Panic Dogging
Standard Hex Key Dogging
Model
1285
Door Thickness
1-3/4
Door Width
48
UL Listed
Yes
Includes
Mounting Hardware
Application
Narrow, Medium and Wide Stile Doors
Length
4
Hand
Right Hand Reverse
Function
Exit Only
Device Length
48 Inch (4 Foot)
Stile
Narrow, Medium or Wide
Fire Rated
No
Finish Description
Dark Bronze Anodized
Device Type
Concealed Vertical Rod Device
Dogging Options
Hex Key Dogging
ADA Compliant
No
Finish Family
Dark Bronze
Standards
ANSI A156.3; UL305 Listed
Device Rating
Panic Exit Hardware
For Door Height
7 Foot
For Door Thickness
1-3/4 Inch
Function Family
Exit Only Device
Features
Trigger Action Locking Release; Positive 5/8" Top and Bottom Bolt Throw
Product Type
Exit Device
Door Material
Aluminum; Hollow Metal
Manufacturer Parent
CRH
Sub-Series
EDT_Concealed_Ver_Rod_Devices_CRL_Jackson_5
Minimum Stile Width
1-3/4 in. (44.5 mm)
Panic Bar Base Height
3-3/16 in. (81 mm)
Panic Bar Projection
2-7/8 in. (73 mm)
Product Overview
This sleek, contemporary CRL Jackson Concealed Vertical Rod Panic Exit Device is designed for use in 1-3/4" (44 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for 48" (1.22 m) standard openings, but may be trimmed for narrower conditions. Features trigger action locking release and positive 5/8" (16 mm) top and bottom bolt throw.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
