CRL Jackson Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device Standard Height 84" (2.13 m) Requires Mortise Cylinder and No. 30821J Mounting Pad for Keyed Entry
MATERIALS: Body and Arms: High Tensile Strength Aluminum Mechanical Components: Stainless and Hardened Plated Steel Latch and Strikes: Sintered Steel
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

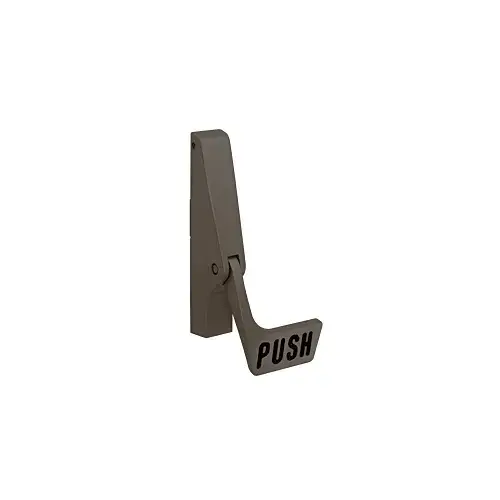

Jackson 311085PL7313 Dark Bronze 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
Item #: 311085PL7313 by Jackson
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
- Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
Shipping Weight
4 lb (1.81kg)
Brand
Jackson
Finish
Dark Bronze
Handed
Left
Certification
ANSI/BHMA 156.3
Finish/Color
Dark Bronze
Series
10
Material - Mechanical Components
Stainless and Hardened Plated Steel
Paddle Push Width (Inches)
3-3/8
Recommended Door Type
Narrow, Medium, Wide Stile Aluminum, Wood, Hollow Metal Doors
Minimum Stile Width (Inches)
1-3/4
Panic Head Base Width
1-1/4 Inches
Material - Housing
Aluminum
Panic Type
Rim (Paddle)
Replacement Parts
30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU
Material - Latch & Strike
Sintered Steel
Panic Head Height (Inches)
7-5/16
Panic Bar Projection (Inches)
4-5/8
Panic Dogging
Screw Driver
Handing
Left Hand Reverse Bevel (LHR)
Model
1085 Paddle
Door Thickness
1-3/4
UL Listed
Yes
Includes
Mounting Hardware
Application
Narrow, Medium and Wide Stile Doors
Hand
Left Hand Reverse
Function
Exit Only
Device Length
48 Inch (4 Foot)
Stile
Narrow, Medium or Wide
Door Height
7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.
Fire Rated
No
Finish Description
Dark Bronze Anodized
Device Type
Concealed Vertical Rod Device
Dogging Options
Hex Key Dogging
ADA Compliant
No
Finish Family
Dark Bronze
Standards
ANSI A156.3; UL305 Listed
Device Rating
Panic Exit Hardware
For Door Height
7 Foot
For Door Thickness
1-3/4 Inch
Function Family
Exit Only Device
Features
Nylon Sleeves and Rollers Insulated Wear Points
Product Type
Exit Device
Door Material
Aluminum, Wood; Hollow Metal
Manufacturer Parent
CRH
Sub-Series
EDT_Concealed_Ver_Rod_Devices_CRL_Jackson_2
Minimum Stile Width
1-3/4
Panic Head Height
7-5/16
Panic Bar Projection
4-5/8
Paddle Push Width
3-3/8
Product Overview
CRL Jackson Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
1085 Concealed Vertical Rod Device
MATERIALS:
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
