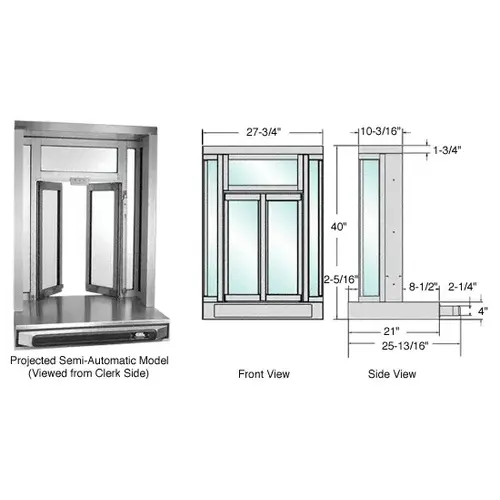

CRL SCBFW2DU Dark Bronze Self-Closing Projected Mount Bi-Fold Service Window
Item #: SCBFW2DU by CR Laurence
Item Discontinued!30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Drawings and Specifications are Available
- Hip-Activated Opening Feature
- Satin Anodized, Bronze Anodized, and Custom Finishes Available
- Select From Manual or Semi-Automatic Operation
- Self-Closing
- Stock or Custom Sizes Available
Service Opening Height
25 in (635 mm)
Overall Size (w x h)
27-3/4" x 40" (705 mm x 1.02 m)
Service Opening Width
15 in (381 mm)
Overall Size
27-3/4 in (705 mm) Wide x 40 in (1016 mm) High
Window Type
Projected Semi-Automatic
Service Opening Size (W x H)
15" x 25" (381 x 635 mm)
Finish
Dark Bronze
Material
Aluminum
Width
27-3/4
Window Style
Projected Semi-Automatic
Glazing Thickness
1/4
Glazing Type
Clear Tempered
Finish/Color
Black Bronze Anodized
Glazed
Yes
Height
40
CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations: MANUAL - Both panels move simultaneously as either panel is manually operated.
SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact DK Hardware Sales Department.
SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Self-Closing
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
.
