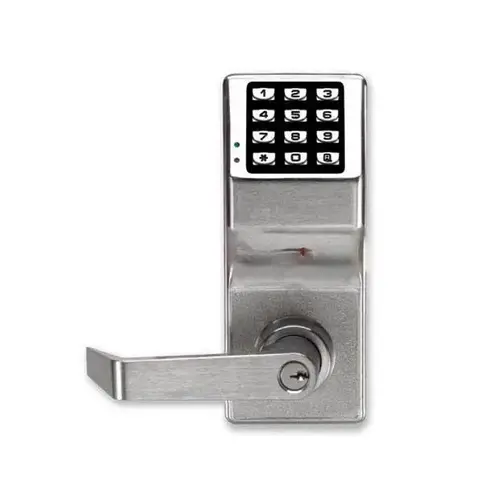

DL4100 Series Trilogy Privacy Cylindrical Electronic Digital Lock, Satin Chrome

Roll over image to zoom in

Alarm Lock DL4100IC26DC DL4100 Series Trilogy Privacy Cylindrical Electronic Digital Lock, Satin Chrome

Item #: DL4100IC26DC by Alarm Lock

See reviews See reviews

$850.71 /each

SAVE UP TO 85.07

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Retrofits Most Cylindrical Locksets and Digital Locks
  • Multi-Level User Codes and One-Time Service Codes
  • Typical 100,000 Cycle Battery Life
  • Vandalproof All-Metal Keypad
  • Non-Handed

Finish

Satin Chrome

Function

Entry

Design

Digital Keypad

Strike

1-1/8" x 2-3/4" T-Strike, 1-1/4" x 4-7/8" ASA Strike

Backset

2-3/4 Inch

Finish Description

Satin Chrome

Product Type

Electronic Cylindrical Lock

Handing

Non-Handed

Sub-Series

DL4100IC/26D-C

Manufacturer Parent

Napco Security Technologies

Hand

Non-Handed

Application

School; Campus Security

Grade

ANSI/BHMA Grade 1

Features

Weatherproof; Standard ANSI A115 Series Prep; 12-Button Vandal-Proof Metal Keypad; 2000 User Codes; 40000 Audit Trail; 500 Scheduled Events; Battery 60000 Cycles; Programmable Relay; Multi-Status LED Indicator; Self-Stick Instructional Signage

Function Family

Privacy/Bedroom/Bathroom

Function Description

Authorized Digital Code or Prox Technology ID Allows Lever to Retract Latch. Inside Lever is Always in Passage Mode and Permits Instant Egress; Push Button on Inside Door to Temporarily Lock-Out Keypad Codes

Standards

BHMA Certified; UL Listed; FCC Certified

Strike Size

1-1/8" x 2-3/4"; 1-1/4" x 4-7/8"

Included Components

(5) AA Alkaline Batteries

Finish Family

Satin Chrome

ADA Compliant

YES

Strike Type

ASA; T Strike

Latch Throw

1/2 Inch

Cylinder Type

Interchangeable Core

Door Thickness

1-5/8 to 1-7/8 Inch

Color Code

626/US26D

Operating Temperature

-31 to 151°F

Warranty

2 Year

DL4100 SeriesTrilogy Electrionic Digital Locks With Privacy & Residency Features

Electronic battery operated digital lock. Holds up to 2000 codes, Master, Management, Supervisor & basic user. Multiple "one-time" user codes. 500 event schedule, real time clock & 40,000 event audit trail. Privacy feature will lock out all users for programmed amount of time. Residency feature-allows exiting without having to lock the door.

Title:
  • Interior LED on the inside housing indicates when the privacy session is active
  • Rest assured knowing that you are safe within the room, while locking out unauthorized users.
  • 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
  • Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
  • Occupied and multi-status LED indicator, flashes when privacy session is active
  • Self-stick instructional signage, supplied (bilingual)
  • Keypad or PC programming/reporting
  • Right- or left-hand, classroom or deadbolt function models, only with 4500 Series
  • 1-3/8" mortise cylinder & ASA strike, matching function supplied, only with 4500 Series
  • 5AA battery-pak operated; 60,000 cycles, typical
  • Weatherproof -31 ̊ to +151 ̊F (-35 ̊ to +66 ̊C)
Specifications: Door Thickness:
  • Fits 1 5/8" to 1 7/8"
Backset:
  • 2 3/4" (2 3/8" also available)
Strike:
  • 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7 /8" ASA strike included
Latch bolt:
  • UL Listed, fire rated 3 hours, 1/2" throw, reversible
Handing:
  • Non-handed
Power:
  • 5 AA alkaline batteries (included)
Keypad:
  • All metal, 12 button. All functions programmed through keypad
Door Prep:
  • Standard ANSI A115 Series prep, modified by adding additional through-bolt boles
Compliances:
  • BHMA Certified Grade 1 heavy duty cylindrical lockset UL Listed 10C Positive Pressure Specification. FCC Certified ADA compliant levers
Cylinder:
  • 6 pin solid brass. SCYl keyway fumisbed with all key override locks Scblage, Corbin-Russwin CL, Sargent 480 series, ASSA 65-611 & Lori cylinders can be used with the HW620 tallpiece (supplied)
Interchangable Core Models:
  • Standard model accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark & Kaba Peaks. IC core models prepped for 6 & 7 pin Yale and Corbin-Russwin IC core models prepped for 6 pin Medeco, Sargent, and Schlage
Finishes:
  • 26D - Satin Chrome
