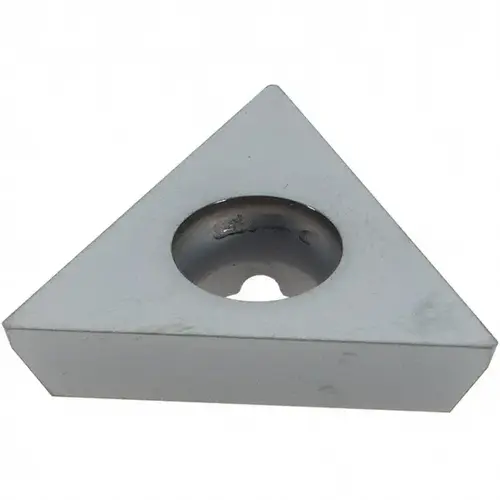

Dorian Tool 73310195469 Milling Insert: DNP10HM, Solid Carbide Coated
Item #: 73310195469 by Dorian Tool
See reviewsSee reviews
In Stock
$47.97
/eachSAVE UP TO 4.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material Application
Cast Iron
Length (mm)
22.00
ANSI Code
TDEX-220404-XDEN-DNP10HM
Thickness (mm)
4.78
Insert Material
Solid Carbide
Series
TDEX
Coating Process
PVD
Coating/Finish
Coated
Corner Radius (Decimal Inch)
0.0150
Length (Decimal Inch - 4 Decimals)
0.8661
Manufacturers Catalog Number
TDEX-220404-XDEN-DNP10HM
Material Grade
K10
Primary Workpiece Material
Cast Iron
Primary Workpiece Material Code
K
Thickness (Decimal Inch - 4 Decimals)
0.1880
Thickness (Inch)
3/16
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.8661
Width (mm - 2 Decimals)
22.00
Coating Classification
PVD
Insert Holding Method
Screw
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.5000
Insert Shape
Triangle
Chip Breaker
DNP
Insert Style
TDEX
Insert Size Code
220404
Relief Angle
15
Included Angle Degree
60
Inscribed Circle (Inch)
1/2
Manufacturer Grade
DNP10HM
Single or Double Sided Insert
Single
Thickness Range (Decimal Inch)
0.1850 to 0.2000
Inscribed Circle (mm)
12.70
Corner Radius (mm)
0.38
Iso Code
TDEX-220404-XDEN-DNP10HM
Product Overview
Milling Insert: DNP10HM, Solid Carbide Coated, 0.188" Thick, 22 mm Wide
