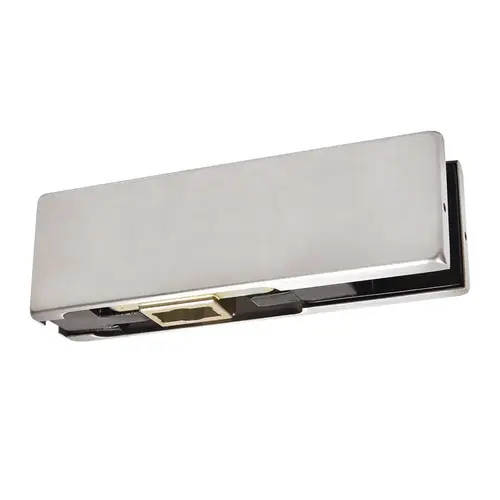

DORMA PT1034BS KABA Brushed Stainless Bottom Door Patch Fitting with Bottom Insert For 3/4" Glass
Item #: PT1034BS by CR Laurence
See reviews See
reviews
In Stock $146.06 /each
SAVE UP TO 14.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Use Monolithic Tempered Glass
- 2-3/4" (70 mm) Pivot Setback
- For 3/4" (19 mm) Glass
Glass Thickness
3/4" (19 mm)
Finish
Brushed Stainless Steel
Pivot Backset (Inches)
2-3/4
Glazing Thickness
3/4
Finish/Color
Brushed Stainless Steel
Type
Bottom
Works with
1NT301 Insert
DORMAKABA® Bottom Patch Fittings are used with our bottom door pivots or floor closers. It fits in the lower corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed or polished stainless steel finishes.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with laminated glass.
.
Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
