CRL SW1600DU Duranodic Bronze Finish Horizontal Sliding Service Window X- or -X Format with 1/8" & 1/4" Vinyl Only No Screen

Item #: SW1600DU by CR Laurence

See reviews

Roll over image to zoom in

CRL SW1600DU Duranodic Bronze Finish Horizontal Sliding Service Window X- or -X Format with 1/8" & 1/4" Vinyl Only No Screen

Item #: SW1600DU by CR Laurence

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Available Pre-Glazed or Non-Glazed
  • Each Unit is Customized to Fit Your Needs
  • For Pocket Glaze or Surface Mount Installation

Panels

O = Fixed, X = Sliding

Glazing

1/4" (6 mm) or 1/8" (3 mm) Vinyl Only

Screen

Without Screen

Finish

Duranodic Bronze

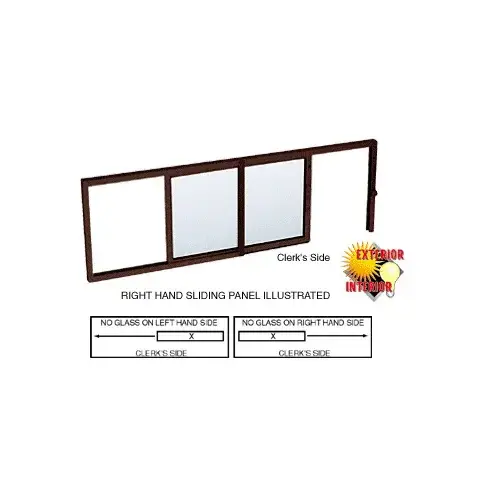

This CRL Horizontal Sliding Service Window is designed for surface mount or pocket installation, as glass is installed in the sliding panel only. Windows can be supplied with vinyl's only for your choice of 1/8" (3 mm) or 1/4" (6 mm) glazing materials. Units pre-glazed with 1/8" (3 mm) or 1/4" (6 mm) tempered glass in the sliding panel are also available. A Slide Lock is standard on this window, but a Pin Lock can also be ordered as an option. Units are shipped assembled, ready for glazing and installation.
NOTE: Specify handing when ordering; left hand or right hand sliding panel from clerk's side. For pocket installations an opening equal to the overall size of the sliding panel is required on one side. Keyed Locks and Surround Frames are not available for this model. An overhang is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Glazing: 1/8" (3 mm) or 1/4" (6 mm) Tempered Glass; Vinyl Supplied on All Models
Instructions Included Important Notes: Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes: 144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions) EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm). Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use. No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock. Insulated glass windows, or 1/2" (12 mm) insulated Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
