These CRL Horizontal Sliding Service Windows have one sliding and one fixed panel. Models are available non-glazed or pre-glazed with your choice of 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass, either with or without a screen. All windows are shipped assembled.
NOTE: Specify left or right hand sliding panel (from clerk's side) when ordering. Surround Frame is not available for insulating glass models. If ordered with a Keyed Lock the screen panel will be installed in the center channel. An overhang is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (on some models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR Painted
Glazing: 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (On Some Models); Vinyl Supplied on All Models
Installation Instructions Included
Product Warning:
Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes: 144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions)
EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm).
Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use.
No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock.
Insulated glass windows, or 1/2" (12 mm) insulated Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

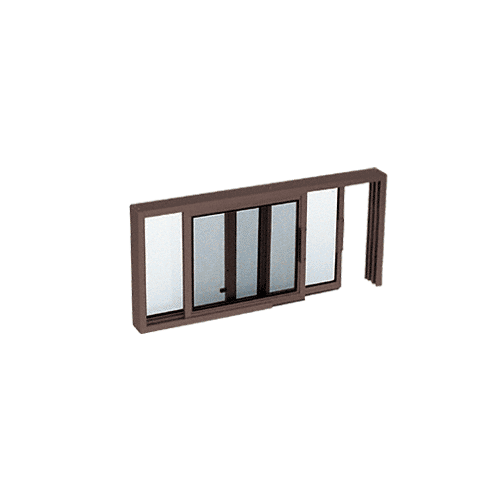

CRL SW1814DU Duranodic Bronze Horizontal Sliding Service Window XO or OX Format with 1/4" Glass Only - No Screen
Item #: SW1814DU by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Light Duty Applications of 50 or Fewer Uses Per day
- Available in Vertical and Horizontal Formats
- Each Unit is Customized to Fit Your Needs
- Single Opening and Single Fixed Panel
Configuration
XO,OX,XO,OX
Glazed
Yes
Panel Designation
O = Fixed, X = Sliding

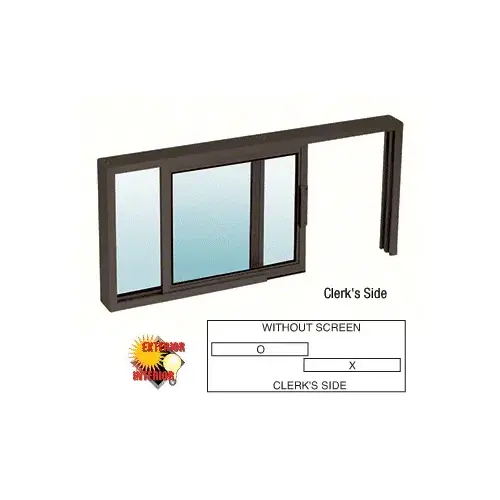

Configuration (From Clerk's Side)
XO,OX,XO,OX
Finish/Color
Black Bronze Anodized
Glazing Type
Tempered (Specify)
Maximum Size
144 Wide x 36 High (With Restrictions)
Glazing Thickness
1/4
Handing
Specify
Window Style
Horizontal Sliding
Material
Aluminum
Finish
Black Bronze Anodized
Screen
No
Glazing
1/4" (6 mm) Glass
Panels
O = Fixed, X = Sliding
Product Overview
These CRL Horizontal Sliding Service Windows have one sliding and one fixed panel. Models are available non-glazed or pre-glazed with your choice of 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass, either with or without a screen. All windows are shipped assembled.
NOTE: Specify left or right hand sliding panel (from clerk's side) when ordering. Surround Frame is not available for insulating glass models. If ordered with a Keyed Lock the screen panel will be installed in the center channel. An overhang is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (on some models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or KYNAR Painted
Glazing: 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (On Some Models); Vinyl Supplied on All Models
Installation Instructions Included
Product Warning:
Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes: 144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions)
EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm).
Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use.
No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock.
Insulated glass windows, or 1/2" (12 mm) insulated Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
