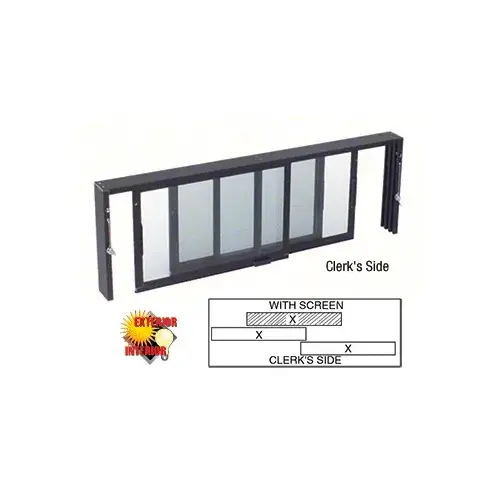

CRL SW4418DU Duranodic Bronze Horizontal Sliding Service Window XX Format with 1/8" Glass with Screen

Item #: SW4418DU by CR Laurence

1 reviews

CRL SW4418DU Duranodic Bronze Horizontal Sliding Service Window XX Format with 1/8" Glass with Screen

Item #: SW4418DU by CR Laurence

1 1 reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • Available in Vertical and Horizontal Formats
  • Dual Bypassing Panels
  • Each Unit is Customized to Fit Your Needs
  • For Light Duty Applications of 50 or Fewer Uses Per Day

Panels

O = Fixed, X = Sliding

Glazing

1/8" (3 mm) Glass

Screen

Yes

Finish

Duranodic Bronze

These CRL Horizontal Sliding Service Windows have two bypassing sliding panels that are secured by jamb pins when closed. One or both can be secured at anytime. Models are available non-glazed or pre-glazed with your choice of 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass, either with or without a screen. All windows are shipped assembled.
NOTE: Surround Frame and Keyed Locks are not available for this window format. An overhang is recommended if used in an exterior application. 42" (1.07 m) is the maximum height for XX windows.
SPECIFICATIONS:
Materials:
Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Glazing: 1/8" (3 mm) or 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (On Some Models); Vinyl Supplied on All Models
Instructions Included Important Notes: Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes: 144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions) EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm). Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use. No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock. Insulated glass windows, or 1/2" (12 mm) related Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
