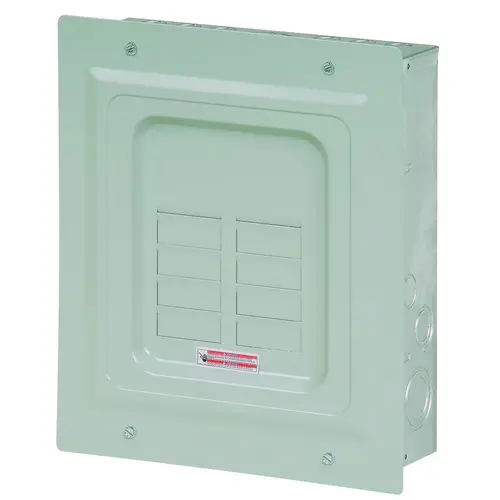

Eaton BR816L125FP BR Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Flush Mounting Light Gray

Item #: BR816L125FP by Eaton Corporation

UPC #: 786676002110

See reviewsSee reviews
See reviews summary
In Stock

$61.31

/each
SAVE UP TO 6.13

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 84 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Larger knockout provides easier installation and time savings
  • Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
  • Excellent conductivity and corrosion resistance, copper bus options available
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • Tangential center knockout, easier installation for conduit applications
  • Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
  • Neutral bus (strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications

Color

Light Gray

Bus Bar Material

Aluminum

Number of Spaces

8

Number of Circuits

16

Mounting Type

Flush

Breaker/Load Center Type

Main Lug

Enclosure Type

NEMA 1

Current Rating

125 A

Cable Size

14 to 1 AWG

Interrupt Rating

10 kA

Nomenclature

BR816L125FP MAIN LUG PANEL125A

Warranty

10 years

Number of Phases

1

Wiring Configuration

3-wire

Product Overview
LOADCNTR MAIN LUG BR INDR 125A
Specifications:

Application: For use as service equipment

Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
