Exit Trim - Key-in-Lever Classroom Lever x Rose, Schlage C Keyway, Powder Coated Aluminum SP28

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

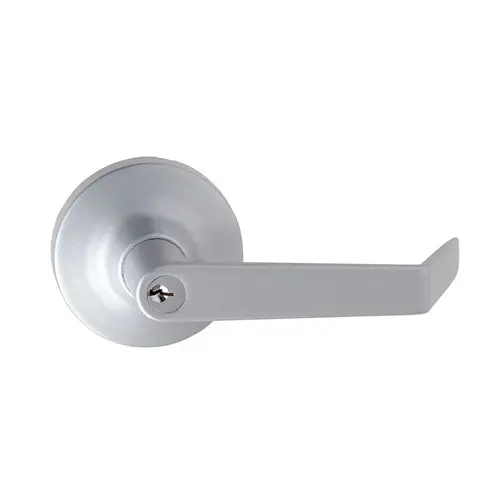

Dexter ED2000T-CLRM-R-KDC-SP28 Exit Trim - Key-in-Lever Classroom Lever x Rose, Schlage C Keyway, Powder Coated Aluminum SP28

Item #: ED2000T-CLRM-R-KDC-SP28 by Dexter by Schlage

UPC #: 043156536559

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Hex Key Dogging standard on all panic devices
  • Rim devices and trim are non-handed; Surface vertical devices easily field reversible
  • Universal hardware pack for wood and hollow metal
  • Door widths: 36" device fits 29" to 36" door size; 48" device fits 33" to 48" door size

Hand

Non-Handed

Color

Aluminum Painted

Color Code

689/US28

Cylinder Type

KIK/KIL

Fire Rated

No

Trim Design

R - Regular

Includes Cylinder(s)

Yes

Package Qty

1

Trim Type

Classroom Lever

Finish

Aluminum Painted

Series

‎ED2000

Handing

Reversible

Keyway

Schlage C

Function

CLRM-Classroom

Finish Description

Aluminum Painted

Lever Style

Flat Lever

Keyblank Grouping

DEXT-SCHL-C-6-1

Product Type

Exit Device Trim

Device Type

Rim or SVR

Keying Charges

CCAM

Box Length

7.0000

Box Width

8.0000

Box Height

4.0000

Alternate Part Number-1

177943

Product Overview

DETEX Advantex 10 Series Rim Exit Device

10 Series Rim Exit Device: is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

FEATURES:

  • ANSI 156.3 - 2008 Grade 1, Type 1.
  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
  • Patented mounting plate and strike locator system replaces paper templates.
  • Fast and easy installation saves time and money.
  • Minimal door prep saves time and money.
  • Outside trims are easily changed or re-keyed without removing device from door.
  • Heavy duty angled end cap deflects damage away from device.
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process.
  • Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing.
  • Non-handed.
  • Stainless steel deadlocking, Pullman-type latch bolt.
  • Field sizeable.
  • 1/8 turn hex or cylinder dogging.

    • SPECIFICATIONS:

  • Door Types: Wood, Hollow Metal, Fiberglass or Aluminum.
  • Door Thickness: Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory).
  • Minimum Stile: 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike.
  • Fasteners: Machine and Self-Drilling Screws standard.
  • Detex Limited Warranty: 10 Year Mechanical. 3 year Electrical Limited Manufacturer’s Warranty.

    • MECHANICAL OPTIONS:

  • F: 3-Hour Fire Rated.
  • H: Hurricane Rated.
  • AM: Anti-Microbial Coating.
  • CD: Cylinder Dogging.
  • HD: Hex Dogging (Std.).
  • LD: Less Dogging.
  • SLR: Silencer.
  • 99: Surface Strike (Std.).
  • 98: Semi Mortise Strike.
  • EC1: Heavy duty angled end cap (Std.).
  • EC2: Flush end cap.
  • 24: Fits 24" Door Width.
  • 30: Fits 30" Door Width.
  • 36: Fits 36" Door Width (Std.).
  • 48: Fits 48" Door Width.

    • ELECTRICAL OPTIONS:

  • EA: Exit Alarm.
  • ED: Electric Dogging.
  • ER EX: Electric Latch Retraction with Request to Exit Switch.
  • EE: Delayed Egress - Self Contained.
  • EE ER: Delayed Egress with Latch Retraction.
  • EI: Electric Integration.
  • EU: Electric Unlock.
  • LX: Latch Bolt Signaling.
  • LXV: Latch Bolt Signaling for High Voltage.
  • ES: Electric Switching.
  • EX: Request to Exit.
  • EXV: Request to Exit for High Voltage.

    • ACCESSORIES:

  • GB1: Glass Bead Kit.
  • SN1: Sex Nut Kit (2 per package).
  • SSK: Security Torx Screw Kit.

    • LISTINGS AND APPROVALS:

  • UL Listed Panic Hardware.
  • UL Listed Fire Exit Hardware for 3 hours, maximum 4' x 10' single doors and pairs of 8' x 8' with F90KR keyed removable mullion.
  • Meets ADA requirements.
  • ANSI/BHMA certified A156.3.
  • UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure.
  • Meets NFPA 80 & 101 for Life Safety.
  • State of Florida Approval.
  • Texas Department of Insurance.
  • California State Fire Marshall.

    • FINISHES:

  • » 605/US3 - Polished Brass
  • » 606/US4 - Brushed Brass
  • » 611/US9 - Polished Bronze
  • » 612/US10 - Brushed Bronze
  • » 613/US10B - Oil Rubbed Bronze
  • » 628/US28 - Aluminum Satin
  • » 629/US32 - Polished Stainless Steel
  • » 630/US32D - Brushed Stainless Steel
  • » 693/SPBLK - Black, Painted
  • » 695/SP313 - Dark Bronze, Painted
