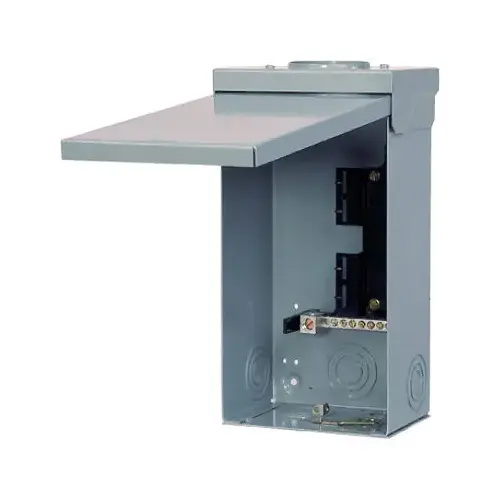

Siemens W0408ML1125U Murray EQ Load Center, 125 A, 4 -Space, 8 -Circuit, Main Lug, NEMA 3R Enclosure, Gray
Item #: W0408ML1125U by Siemens AG
UPC #: 783643123892
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
240
Warranty
1 Year
Certifications
UL
Amperage
125 Amp
Phase
1
Certifications and Listings
UL Listed
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Load center width (in.)
7
Maximum Amperage
125
Maximum Voltage
120/240 Volt
Number of Circuits
8
Number of Phases
1
Number of Spaces
4
Pack Size
1
Returnable
Yes
UL Listed
Yes
Defective Code
A
Breakers Included
Yes
Maximum Number of Circuits
8 circuits
Circuit Protection Type
Main Lug
Sub Brand
EQ
Mounting Type
Surface
Indoor or Outdoor
Outdoor
Volts
120/240 V
Packaging Type
Boxed
Depth
4-1/4"
Product Type
Main Lug Load Center
AMPS
125 amps
Each Weight
8.000 LB
Velocity
X
UNSPSC
39121101
Alternative UPC
783643322196
Height
5.20
Length
15.50
Width
13.00
Hazardous Material
No
Country Origin Code
MX
Color
Gray
Bus Bar Material
Copper
Breaker/Load Center Type
Main Lug
Application
For Residential Applications
Enclosure Type
NEMA 3R
Current Rating
125 A
Interrupt Rating
100 kA
Nomenclature
W0408ML1125U MAIN LOADCNTR125A
Cover/Lid Type
Flush
Wiring Configuration
3-wire
Material
Brass
For Use With
Suitable For Use As Service Equipment
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
NEMA Rating
3R
Features
Single Phase Load Center
Mount Type
Surface
MADE IN THE USA
No
Recommended Environment
Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
11.25 in.
Assembled Product Height
4.75 in.
Assembled Product Width
7 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCENTER MAIN LUG OUTDR 125A
Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 4 space/8 circuits 1-pole, 2 QP breakers 2-pole, 120/240 VAC. 10,000 AIR. With closure plates, HS-hubs sold separately. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service equipment when a main breaker (100 A maximum) is back-fed in a branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. CSA and UL listed, complies fully with NEC and UL requirements for Class CTL. 6 in x 12-1/4 in x 4-1/4 in.
