ES Series 150 Amp 20-Space 30-Circuit Main Breaker Indoor Load Center Gray

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

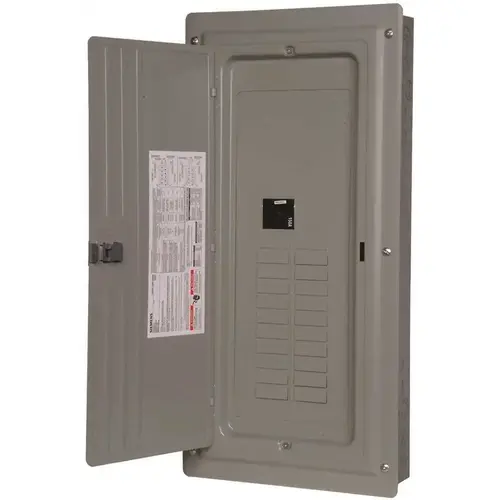

Siemens S2030B1150 ES Series 150 Amp 20-Space 30-Circuit Main Breaker Indoor Load Center Gray

Item #: S2030B1150 by Siemens AG

UPC #: 040892651027

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Voltage

120/240

Warranty

10 Year

Amperage

150 Amp

Phase

1

Certifications and Listings

UL Listed

Indoor/Outdoor

Indoor

Load Center Type

Main Breaker

Load center width (in.)

15.875

Maximum Amperage

150

Maximum Voltage

120/240 Volt

Number of Circuits

30

Number of Phases

1

Number of Spaces

20

Pack Size

1

UNSPSC

39121101

Product Overview

The new Siemens ES Series Load Center is the smart choice when value and quick installation are of highest priority. The ES Series load centers include labor saving features such as the patented Insta-wire and mounting trim tabs. These exclusive features make the ES Series load center the best load center for the value minded contractor.

  • A single phase, 120/240-Volt, 150 Amp main breaker load center with 20-spaces/30-circuits
  • Aluminum bus
  • Ground bar field installed
  • Combination head screws on neutrals, ground, trim, upper pan and bond screw provide installation flexibility
  • Dual side inboard neutral
  • Invertible for bottom feed application
  • All ES series load centers allow the main breaker to be converted to main lug, but not vice versa
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Pre-positioned bond screw eliminated bond straps/screw assemblies, and reduces the risk of losing components in the field
  • Insta-wire neutral/ground system allows for faster installation because screws arrive backed out, ready for wire insertion, the visible neutral and grounds systems also aids in the insertion of conductors
  • Rigid, sturdy base pan provides ruggedness required for harsh applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
