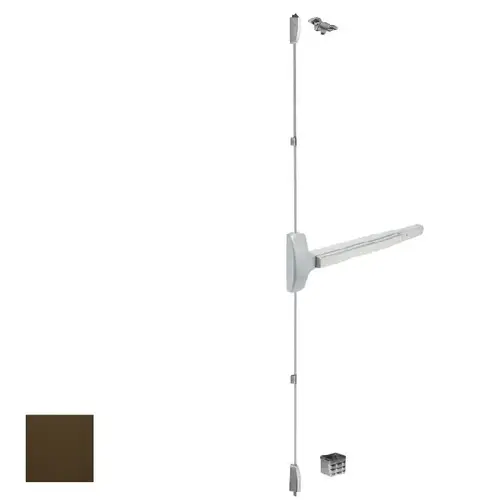

Falcon 25-V-EO-313AN-4FTX8FT 25 Series Exit Device, Dark Bronze Anodized
Item #: 25-V-EO-313AN-4FTX8FT by Falcon
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Series
25 Pushbar
Product Type
Exit Device
Finish Description
Dark Bronze Anodized
Fire Rated
No
Door Height
8 Foot (96 Inches)
Stile
Wide Stile
Device Length
48 Inch (4 Foot)
Function
Exit Only
Handing
Non-Handed
Finish
Dark Bronze Anodized
ANSI Function
01
Device Type
Surface Vertical Rod Device
Dogging Options
Hex Key Dogging
Latch Type
Deadlocking
ADA Compliant
No
Finish Family
Dark Bronze
Included Components
Fasteners and Sex Bolts
Standards
ANSI A156.3-2001 Grade 1; UL 305
Stile Width
3-1/2 Inch
Trim Style
EO
Center Case Dimensions
9" x 2-1/4" x 2-5/8"
Device Bar Projection
2-3/4" Maximum; 2" Dogged
Device Rating
Panic Exit Hardware
For Door Height
8 Foot
Device Trim Function
No Trim
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4"
Chassis Material
Aluminum
Device Centerline From Finished Floor
40-1/4 Inch
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
For Door Width
4 Foot
Mechanism Case Dimensions
2" x 2-1/4"
Features
Surface-Applied Design; The Sleek Touch Bar Design Ensures An Attractive Installation
Bolt Throw
Top 3/4"; Bottom 1/2"
Application
Offices, Banks, Assisted Living Facilities, Retail Stores and Other Commercial Buildings Have Constant Traffic
Door Material
Metal; Wood
Manufacturer Parent
Allegion
Sub-Series
EDT_Surface_Vertical_Rod_Devices_falcon_10
Product Overview
25-V SeriesVertical rod device
Panic exit hardware - High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon F-25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.
Specifications: Hand:- Field reversible.
- US3 (605); US4 (606); US10 (612); US11 (643e); US15 (619); US19 (622); US26 (625); US26D (626); US32 (629); US32D (630); US28 (628), 313AN (710)
- 3788 top strike is surface applied 2130 bottom strike is mortised into floor
- Use 4215 angle bracket in flush transom installations Allows use of standard 3788 strike
- Top stainless steel 3/4" throw. Bottom bolt, 1/2" throw.
- Standard in top latch.
- Half turn hex dogging standard. No threaded parts to wear out.
- Specify "CD" prefix. Uses 1 1/8" long mortise cylinder with standard cam.
- 1 3/4" thick, wood or metal. Specify thickness if other than 1 3/4".
- 2 3/4" maximum, 2" dogged.
- Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
- All mounting screws are concealed, sheet metal screws and machine screws available, specify AMS.
- Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 12 - 425 (#10-24) SNB. For devices with trim, specify 8 - 425 (#10-24) SNB.
- Certified ANSI A156.3-2001 grade 1 standards.
- Furnished to length based on a 40 1/4" horizontal CL from finished floor and a 7'0" door standard. Variations from these standards must be specified when ordering.
- Less bottom rod vertical device.
- For glass lite applications; 1/4" thick, specify SK25-V.
