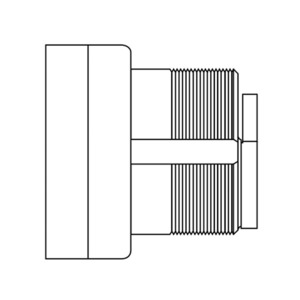

Full Size Interchangeable Mortise Cylinder C Keyway with Compression Ring; Spring; 3/8" Blocking Ring; and L9060 Cam Satin Chrome Finish

Roll over image to zoom in

Schlage Commercial 30-138C 626Click To Copy Full Size Interchangeable Mortise Cylinder C Keyway with Compression Ring; Spring; 3/8" Blocking Ring; and L9060 Cam Satin Chrome Finish

Item #: 30-138C 626 by Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$175.82

/each
SAVE UP TO 17.58

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1477 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • FSIC, Based on the Industry Standard Plug Diameter of 1/2
  • Certified Schlage Parts
  • Made With Strong Materials
  • Many Parts Are Finish Specific

Finish

Satin Chrome

Series

Mortise Cylinder 1-1/2 Inch

CAM Type

Schlage L

Color Code

626/US26D

Keyway

Schlage C

Cylinder Type

LFIC Mortise

Cam Number

L583-255

Package Qty

1

Special Marks

Full size/large format interchangeable core

Finish Description

Satin Chrome

Keyblank Grouping

SCHL-C-6-2

Product Type

Cylinder/IC Core

Control Keyblank Grouping

SCHL-C-6-3

Keying Charges

CIADM

Cylinder Length

1-1/2 Inch

Grade

ANSI/BHMA Grade 1

For Use With

Schlage L and HL Series Locks

Product Length

1-1/2 Inch

Finish Family

Satin Chrome

Included Components

Compression Ring; Spring; 3/8 in Blocking Ring

Function

Cylinder

Standards

BHMA certified to ANSI A156.5 2001

Features

Basic Security; Enhanced Security

Manufacturer Parent

Allegion

Sub-Series

CB_Mortise_Cylinders_schlage_commercial_48

Product Overview
Cylinders for Schlage L Series mortise locksets. Sectional trim (cylinder with compression ring spring and 3/8" blocking ring). 9060 requires 1/2" blocking ring. All functions except - L9060P outside and L9485/L9486 Hotel Functions. Conventional 30-151
