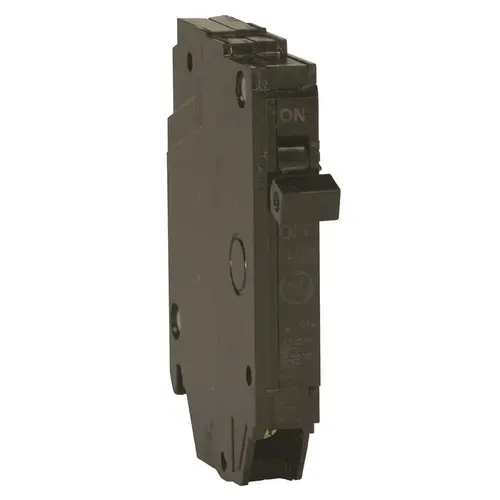

General Electric GETHQP115 Feeder Circuit Breaker, Type THQP, 15 A, 1 -Pole, 120/240 V, Plug Mounting
Item #: GETHQP115 by General Electric Company
UPC #: 783164085679
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection.
- Calibration screw is cemented to prevent shifting.
- Cases made of heat-resistant thermoset for stability and structural integrity.
- Trips to the center position.
- ANSI certified and CSA and UL listed.
- Meets NEMA standards and box type terminals.
Voltage
120
Mounting Type
Plug
Warranty
One year warranty from first use
Certifications
UL
Amperage
15 Amp
Phase
1
Manufacturer Warranty
Lifetime Warranty
Breaker Type
Single Pole
Certifications and Listings
UL Listed
Circuit Breaker Type
Thin
Maximum Amperage
15
Number of Poles
1
Product Depth (in.)
0.5
Product Height (in.)
3
Product Width (in.)
3.375
Pack Size
1
UNSPSC
39121601
Terminal Type
Lug
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Non-Interchangeable
Nomenclature
THQP115 GE 1/2 BREAKER 15A 1P
Actuator Type
Toggle
Current Rating
15 A
Dimensions
3.28 in L x 0.5 in W x 2.58 in H
Type
Type THQP
Operating Temperature
60 to 75 deg C
Wire Size
14 to 8 12 to 8 AWG
Number of Phases
1
Specifications:
Suitable for: Reverse Feed
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
