30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
UNSPSC
41113630
Pack Size
1
Features
Auto Ranging, Backlit, Data Hold, Data Log/Record, DC Polarity Indicator, Dual Voltage Indication, Handheld, Interchangeable Leads
Tools Product Type
Test Meter
Test Meter Type
Clamp/Multimeter
Safety Rating
CAT III 600V
Product Width (in.)
2.75
Product Height (in.)
5.5
Product Depth (in.)
2.865
Max DC Amps
10 Amp
Max AC Amps
10 Amp
Included
Batteries
Digital/Analog
Digital
Digital / Analog
Digital
Control Type
Digital
Clap-On
NO
Category Rating
III
Battery Power Type
Carbon Zinc
Manufacturer Warranty
1 Year Limited
Warranty
1 year limited
Type
Multimeter
Voltage
600
Power Source
Battery
Accuracy
/-1 VAC /-0.8 VDC /-1.2 AC/DC Current /-0.8 Resistance
Power Supply
9 V
Measuring Functions
AC Current AC Voltage Continuity Threshold DC Current DC Voltage Diode Integrity Resistance
Temperature Rating
32 to 104 deg F
Dimensions
5.8 in L x 2.9 in W x 2 in H
Nomenclature
TS04 MULTI METER DIGITAL BLUTH
Resistance
400 Ohm to 40 Mohm
Amps [Nom]
400 µADC; 4 mAAC; 40 mAAC; 400 mAAC; 10 A
Electrical Resistance [Max]
40 kOhm; 400 Ohm; 40 MOhm
Electrical Resistance [Min]
4 MOhm; 4 kOhm
Amps [Min]
400 µADC; 4 mAAC
Nominal Voltage
4 VAC; 40 VAC; 400 VAC; 600 VAC; 400 VDC; 4 VDC; 4
Voltage Type
AC/DC
Maximum Amps
400 mAAC; 10 A
Includes: (1) Pair of Double-Insulated Test Leads Bead Thermocouple Probe and Plug Adapter 9 V Battery

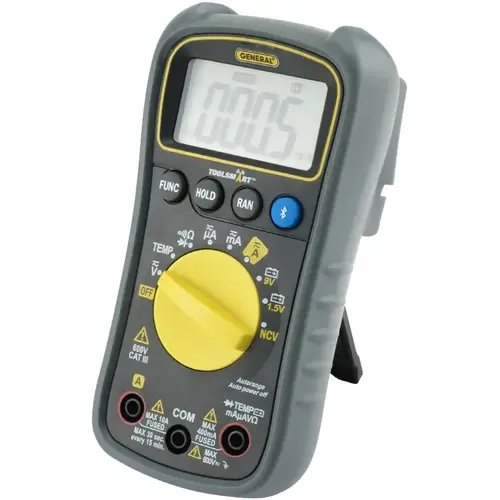

The ToolSmart digital multimeter reads voltage, current, resistance, temperature and more with turn of the dial. It also allows a smartphone to serve as a second viewing screen in case conditions are dark or there is more than one person on the job. All data goes directly from the meter to the free ToolSmart smartphone app.
