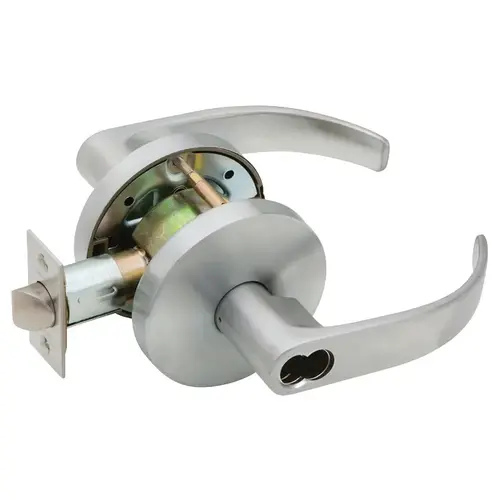

Grade 2 Quantum Storeroom Door Lever Set with Small Format Interchangeable Core from the W Collection Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Falcon W581BD Q 626Click To Copy Grade 2 Quantum Storeroom Door Lever Set with Small Format Interchangeable Core from the W Collection Satin Chrome

Item #: W581BD Q 626 by Falcon

See reviewsSee reviews
See reviews summary
In Stock

$91.01

/each
SAVE UP TO 9.10

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 103 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Heavy Duty Torsion Springs to Prevent Lever Sag
  • Priced to Provide Value for Low Traffic, Low Budget Doors and Projects
  • Door Thickness: 1-3/8” to 1-3/4” standard.
  • Does Not Require Field Disassembly for Rehanding, Allowing for Easy Installation and Maintenance
  • Backset: 2-3/4” standard; 2-3/8” also available.
  • Non Handed Design
  • Mechanism: Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
  • Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
  • Limited 10 Year Warranty
  • Handing: Locks are non-handed.
  • Cylinder: Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
  • Competitor Cylinder: The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
  • Keyways: “G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
  • Trim: Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
  • Latches: 1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
  • Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
  • Screws: Furnished with combination screws for use in wood or metal doors and frames.
  • ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
  • UL: 3-hour A label.

Finish

Satin Chrome

Function

Storeroom

Series

W Series

Design

Quantum

Product Class

Commercial

UL Listed

Yes

Approved for Commercial Use

Yes

Theme

Transitional

Latch Faceplate

Square Corner

Configuration

Lever Set

Door Thickness

1-3/4", 1-3/8"

ADA

Yes

Backset

2-3/4" Backset

Trim Height

2.9325

Trim Width

2.9325

Handle Width

2.1875

Handle Projection

2.8125

Handing

Left, Reversible, Right

Material

Brass, Steel

Shape

Drop, Flat

Panic Proof

Yes

Manufacturer Warranty

10 Year

Fire Rated

Yes

Cylinder

6 Pin

BHMA Certification

Grade 2

ANSI Certification

A156.2

Color Code

626/US26D

Strike

ASA Strike

Product Overview
W Series Small Format Storeroom Quantum Lever Lock Less Core with 30197 Latch 30148 Strike Satin Chrome Finish
