Features
- Constructed from plastic with a black finish, this driver is designed for 12 V consumer applications using the Loox5 plug system.
- Measures 7-1/2" x 2-3/8" x 5/8" with a weight of 184 g, providing a compact power solution for lighting and electrical setups.
- Compatible with 12 V consumers featuring the Loox5 2-pin box to box socket system for reliable electrical connections.
- Features overload protection and efficiency factor correction, with a standby power consumption of 0.12 W for efficient operation.
- Delivers 40 W output power and 3.33 A output current, operating on a mains voltage range of 240 V for versatile use.
- Suitable for ambient temperatures between -25 and 45 degrees C, with a service life exceeding 70,000 hours for long-term use.
- Includes one driver, mounting accessories, and a US power cord, designed for simple screwing installation in ventilated areas.
Weight
184 g
Installation
For screwing
Output Current
3.33 A
With switching function
No
Power consumption at 230 V no load
0.12 W
Dim. (L x W x H)
191 x 60 x 16 mm
Secondary side circuit
Parallel connection
Ambient temperature
-25–45 °C
Efficiency at 115 V full load
0.89
Life Time
> 70.000 h
Supplied with
1 driver Mounting accessories US power cord
Power consumption at 115 V no load
0.06 W
Order reference
Alternative mains leads available with open cable ends or switches.
Mains voltage
100 – 240 V
Mains frequency
Version
With overload protection
Efficiency factor correction (PFC)
yes
Efficiency at 230 V full load
0.89
Area of application
Installation reference
Ensure that there is a sufficient air supply and circulation at the mounting location.
Product Type
Driver
Standby Power Consumption
0.12 W
Output Power
40 W
Output Voltage
12 V DC
Connections
1 x socket, Loox5 2-pin 12 V box to box
Color/Finish
Black
KitQuantity #1
9999999
KitItemCode #1
833.89.003
Height
5/8"
Material
Plastic
Suitable For
12 V consumer with Loox5 plug system
Outputs
1 x socket, Loox5 2-pin 12 V box to box
RequiredProducts
true
Color Finish
Black
Switching function
No
Weight (Gm.)
184 g
Material basic-materials
Plastic
Output power formula
40 W
Connection drivers for led
Parallel connection
Power factor correction
yes
Output voltage with voltage type formula
12 V DC
Length inches lang dep
7 1/2"
ArticleType
BOM
Mains voltage formula
100 – 240 V
Installation note
Ambient temperature -13 °F to +113 °F (60 W: +104 °F) Ensure that there is a sufficient air supply and circulation at the mounting location. The lifetime is doubled with an ambient temperature of <86 °F.
Efficiency full load 115
89 %
Lighting outputs
1 x socket, Loox5 2-pin 12 V box to box
Suitable for drivers for led
12 V consumer with Loox5 plug system
Installation lighting
With screws
Height inches lang dep
5/8"
Output current A
3.33 A
Width inches lang dep
2 3/8"
Area of application drivers for led
LED
Efficiency full load 230
89 %
Product Overview

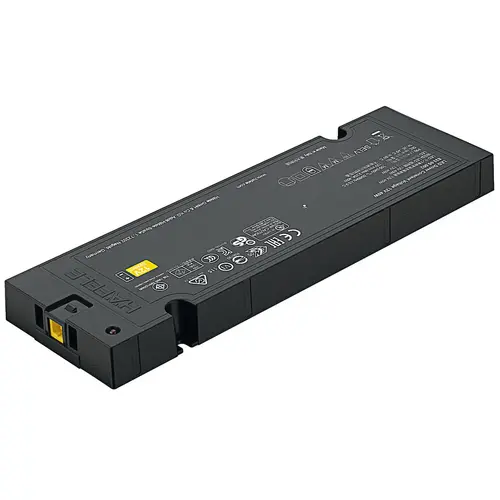

Driver, Loox5, constant voltage 12 V -25-45 degree C 191 x 60 x 16 mm 0.89 0.89 3.33 A 40 W 0.12 W 0.12 W 184 g with efficiency factor correction, Voltage 12 V, output power: 40 W, with efficiency factor correction Black is a power supply component for 12 V consumers using the Loox5 plug system. This driver is constructed from plastic and features a black finish. It operates with a mains voltage of 240 V and provides an output voltage of 12 V DC with an output power of 40 W and an output current of 3.33 A. The unit includes a secondary side circuit for parallel connection and is equipped with overload protection. It features an efficiency factor correction and has a standby power consumption of 0.12 W. The dimensions are 7-1/2" x 2-3/8" x 5/8" with a weight of 184 g. It is designed for screwing installation and requires sufficient air supply and circulation at the mounting location. The driver connects via a Loox5 2-pin 12 V box to box socket. It is suitable for ambient temperatures ranging from -25 to 45 degrees C and has a life time of over 70,000 hours. The package includes one driver, mounting accessories, and a US power cord.
