Features
- Constructed from plastic with a black finish, this driver is designed for 24 V consumers using the Loox plug system.
- Compact dimensions measure 5.51" in length, 1.97" in width, and 0.63" in height for versatile installation.
- Compatible with 24 V systems, providing 20 W output power and 0.83 A output current for lighting applications.
- Features a Loox5 2-pin 24 V box to box socket connection and includes one US power cord and mounting accessories.
- Operates with a mains voltage of 240 V and includes overload protection for consistent performance.
- Rated IP20 for protection and Safety Class 2, with a life time exceeding 50,000 hours for long-term use.
- Designed for screw-in installation, requiring sufficient air circulation at the mounting location for proper operation.
Weight
100 g
Installation
For screwing
Output Current
0.83 A
Power consumption at 230 V no load
0.11 W
Dim. (L x W x H)
140 x 50 x 16 mm
Secondary side circuit
Parallel connection
Plug mains voltage
Ambient temperature
-25–45 °C
Efficiency at 115 V full load
0.88
Supplied with
1 driver with mounting accessories 1 US power cord
Power consumption at 115 V no load
0.08 W
Order reference
Alternative mains leads available with open cable ends or switches.
Mains voltage
100 – 240 V
Mains frequency
Version
With overload protection
Efficiency factor correction (PFC)
Efficiency at 230 V full load
0.88
Area of application
Installation reference
Ensure that there is a sufficient air supply and circulation at the mounting location.
Product Type
Driver
Standby Power Consumption
0.11 W
Output Power
20 W
Output Voltage
24 V DC
Life Time
>50,000 hours
Connections
1 x socket, Loox5 2-pin 24 V box to box
Color/Finish
Black
KitQuantity #1
9999999
KitItemCode #1
833.89.003
Height
5/8"
Material
Plastic
Suitable For
24 V consumer with Loox plug system
Outputs
1 x socket, Loox5 2-pin 24 V box to box
Input Ports
1 x plug, Small appliances
RequiredProducts
true
Color Finish
Black
Weight (Gm.)
100 g
Material basic-materials
Plastic
Output power formula
20 W
Connection drivers for led
Parallel connection
Output voltage with voltage type formula
24 V DC
Length inches lang dep
5 1/2"
ArticleType
BOM
Mains voltage formula
100 – 240 V
Installation note
Ensure that there is a sufficient air supply and circulation at the mounting location.
Efficiency full load 115
88 %
Lighting outputs
1 x socket, Loox5 2-pin 24 V box to box
Installation lighting
With screws
Height inches lang dep
5/8"
Type of plug mains
C8 2-pin
Output current A
0.83 A
Width inches lang dep
2"
Area of application drivers for led
LED
Lighting inputs formula
1 x plug, Small appliances
Efficiency full load 230
88 %
Product Overview

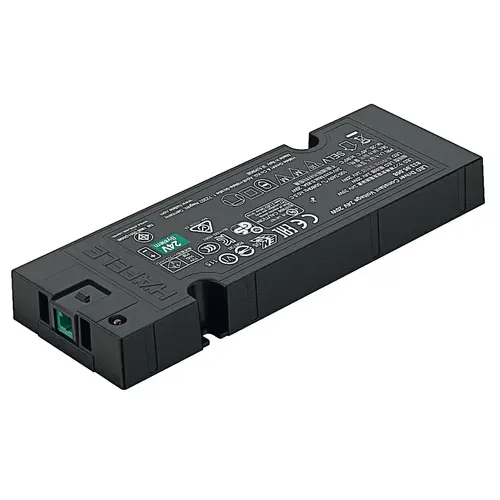

The Driver, Hafele Loox5, constant voltage 24 V 140 x 50 x 16 mm 0.88 0.88 0.83 A 20 W 0.08 W 0.11 W 0.11 W 100 g 20 W, Voltage 24 V, output power: 20 W Black is a power supply unit designed for 24 V consumers with the Loox plug system. Constructed from plastic with a black finish, this driver features a flat profile measuring 5.51" in length, 1.97" in width, and 0.63" in height. It operates with an input mains voltage of 240 V and provides an output voltage of 24 V DC with 20 W of output power. The unit includes overload protection and is designed for parallel connection on the secondary side circuit. It features an ambient temperature range of Minus 25 to 45 degrees Celsius and a life time exceeding 50,000 hours. The driver is rated IP20 for protection and meets Safety Class 2 requirements. It connects via a Loox5 2-pin 24 V box to box socket and includes one US power cord and mounting accessories. Installation is performed by screwing the unit into place, ensuring sufficient air supply and circulation at the mounting location.
