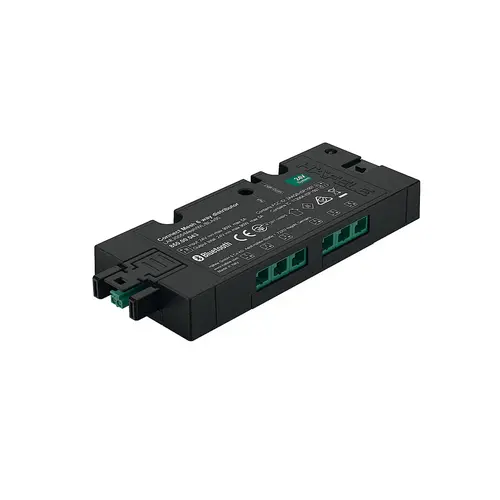

Distributor, Hafele Connect Mesh, 6-way, with switching function with programmable switching input, Voltage 24 V, max. connected wattage 90 W Black

Roll over image to zoom in

Hafele 850.00.043Click To Copy Distributor, Hafele Connect Mesh, 6-way, with switching function with programmable switching input, Voltage 24 V, max. connected wattage 90 W Black

Item #: 850.00.043 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$112.77

/each
SAVE UP TO 11.28

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 543 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • WIth Bluetooth® and switching function
  • Plug connection box to box
  • The connection of the distributors with the driver can be done via a box to box plug-in connection or via an extension lead. Any number of distributors can be connected to the driver.
  • Observe maximum wattage!
  • Control several light colors on one box!
  • Control several light colours on one box!
  • Each output port can be controlled individually.

Low voltage socket

Loox5 mini LED 24 V, Loox5 mini 24 V box to box

Color/Finish

Black

Supplied with

1 Distributor incl. fixing material (adhesive tape and screws)

Order reference

Please order adapter for multi-white lights. for RGB lights or for electrically operated fittings separately.

Standby Power Consumption

0.5 W

Connections

1 x socket, Loox5 2-pole 24 V Box-to-Box

Area of application

For on/off switching and dimming (0–100 %) of monochrome lights; or with adapters for operation with multi-white lights, RGB lights and electrically operated fittings

Distance between controls max.

10 m

Connected output ports

6 x sockets, Loox5 2-pole 24 V

Power Rating

90 W

Input Ports

1 x plug, Loox5 2-pole 24 V Box-to-Box

Dimention (L x W x H)

120 x 50 x 16 mm

Control input ports

1 x socket, Loox switch

Voltage

24 V

Material

Plastic

Switching function

Programmable with Häfele Connect Mesh

Low voltage plug

Loox5 mini 24 V box to box

Version

Box-to-Box

Color system

monochrome
