Heavy Duty 400 Amp 600-Volt 3-Pole Indoor Fusible Safety Switch

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

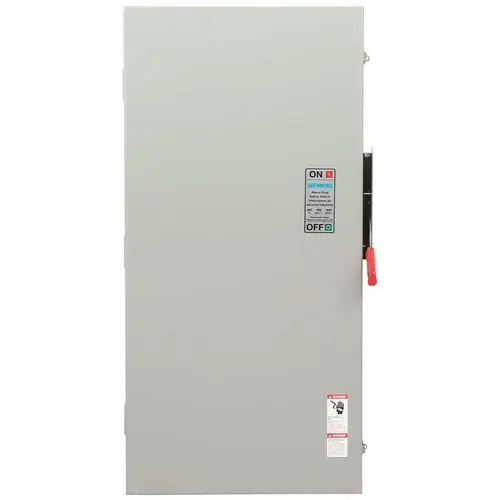

Siemens HF365A Heavy Duty 400 Amp 600-Volt 3-Pole Indoor Fusible Safety Switch

Item #: HF365A by Siemens AG

UPC #: 887621872519

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Voltage

600

Warranty

1 Year

Certifications

UL, CSA

Amperage

400 Amp

Manufacturer Warranty

1 Year

Certifications and Listings

UL Listed

Fusible / No Fusible

Fusible

Maximum Amperage

400, 400 amp

Maximum Wattage

240000

NEMA Rating

1

Number of Phases

1

Product Depth (in.)

6.94

Product Height (in.)

45.32

Product Width (in.)

22.40

Safety Switch Type

Safety Switch

Features

Mountable, On/Off Switch, Overload Protection, Short Circuit Protection

Pack Size

1

UNSPSC

39122205

Product Overview

Heavy Duty Safety Switches are available in 30-1200A ratings and in Type 1, 3R, 12 and 4X enclosures. Both fusible and non-fusible versions are offered. They can be used on circuits that are rated through 200K when protected by or used with Class R or J fuses. They feature quick make and break operation and visible blade construction.

  • 3-Pole, 600-Volt, 600 Amp fusible safety switch
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Visible blade, double-break switching action
  • Arc chutes dissipate heat and prolong switch life
  • Highly visible red handle grip is designed for hook stick operation
  • Defeatable dual cover interlock
  • Center punch provided for field drilling to allow on padlocking
  • Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
  • Tangential knockouts for easy conduit lineup
  • Side-hinged door that opens past 180° for easier wiring
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer™s hands
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Door latch securely holds door closed and allows cover padlocking
  • Front removable mechanical lugs that are suitable for CU/Al 60° or 75°C conductors
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Drawn cover for increased rigidity and resistance to abuse
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
