Turning Inserts; ANSI Insert Code: DCMT32.50.5 ; ISO Insert Code: DCMT11T302 ; Relief Angle: 7 ; Insert Style: DCMT ; Corner Radius (Decimal Inch): 0.0080 ; Included Angle: 55 - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

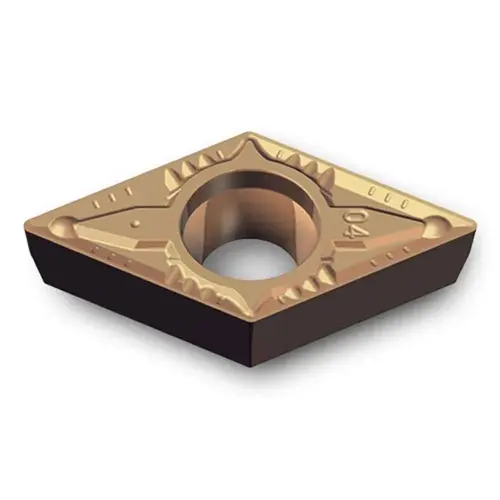

Ingersoll Cutting Tools 6213128-XCP10 Turning Inserts; ANSI Insert Code: DCMT32.50.5 ; ISO Insert Code: DCMT11T302 ; Relief Angle: 7 ; Insert Style: DCMT ; Corner Radius (Decimal Inch): 0.0080 ; Included Angle: 55 - pack of 10

Item #: 6213128-XCP10 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$279.65

/package
SAVE UP TO 27.96

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1560

Side Clearance

Positive

Vendor Drop Ship

N

Maximum Depth of Cut (Decimal Inch)

0.0790

ISO Insert Code

DCMT11T302

Iso Code

DCMT11T302FM TT8115B

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Relief Angle

7

Clearance Code

C

Rake

Positive

ANSI Insert Code

DCMT32.50.5

Insert Length (Decimal Inch)

0.4570

Insert Holding Method

Screw

Coating/Finish

Al2O3

UNSPSC Code

23242105

Insert Style

DCMT

ANSI Size Code

32.50.5

Insert Hand

Neutral

Manufacturer Grade

TT8115B

Inscribed Circle (Inch)

3/8

Inscribed Circle (Decimal Inch)

0.3750

Coating Process

CVD

Primary Workpiece Material

Steel

Insert Shape Code

D

Corner Radius (Decimal Inch)

0.0080

Hole Diameter (Decimal Inch)

0.1730

Chip Breaker

FM

Tolerance Code

M

ISO Size Code

11T302

Wiper Edge

No

Insert Size Code

32.50.5

Included Angle

55

Number of Cutting Edges

2

Series

DCMT

Insert Shape

D - Diamond (Rhombic) 55-Deg

Chip Breaker Operation

Roughing

Primary Workpiece Material Code

P

Product Overview
Turning Inserts; ANSI Insert Code: DCMT32.50.5 ; ISO Insert Code: DCMT11T302 ; Relief Angle: 7 ; Insert Style: DCMT ; Corner Radius (Decimal Inch): 0.0080 ; Included Angle: 55
